6WH20LC980-6* 720KW600RPM
6WH20LC1225-7.5* 900KW 750RPM
6WH20LC1230-1 905KW 1000RPM
6WH20LC1360-1 1000KW 1000RPM
6WH20LC1500-9* 1103KW 900RPM
6WH20LC1520-1 1118KW 1000RPM
6WH20LC1632-1 1200KW 1000RPM
6WH20LC1795-1 1320KW 1000RPM
8WH20LC1360-6* 1000KW 600RPM
8WH20LC1650-7.5* 1213KW 750RPM
8WH20LC2000-1 1470KW 1000RPM
8WH20LC2040-9 1500KW 900RPM
8WH20LC2176-1 1600KW 1000RPM
8WH20LC2400-1* 1765KW 1000RPM
| Engine | Model | Rated power | Speed |
| （kW/Ps） | （r/min） | ||
| WH20 | 6WH20LC980-6* | 720/980 | 600 |
| 6WH20LC1225-7.5* | 900/1225 | 750 | |
| 6WH20LC1230-1 | 905/1230 | 1000 | |
| 6WH20LC1360-1 | 1000/1360 | 1000 | |
| 6WH20LC1500-9* | 1103/1500 | 900 | |
| 6WH20LC1520-1 | 1118/1520 | 1000 | |
| 6WH20LC1632-1 | 1200/1632 | 1000 | |
| 6WH20LC1795-1 | 1320/1795 | 1000 | |
| 8WH20LC1360-6* | 1000/1360 | 600 | |
| 8WH20LC1650-7.5* | 1213/1650 | 750 | |
| 8WH20LC2000-1 | 1470/2000 | 1000 | |
| 8WH20LC2040-9 | 1500/2040 | 900 | |
| 8WH20LC2176-1 | 1600/2176 | 1000 | |
| 8WH20LC2400-1* | 1765/2400 | 1000 |

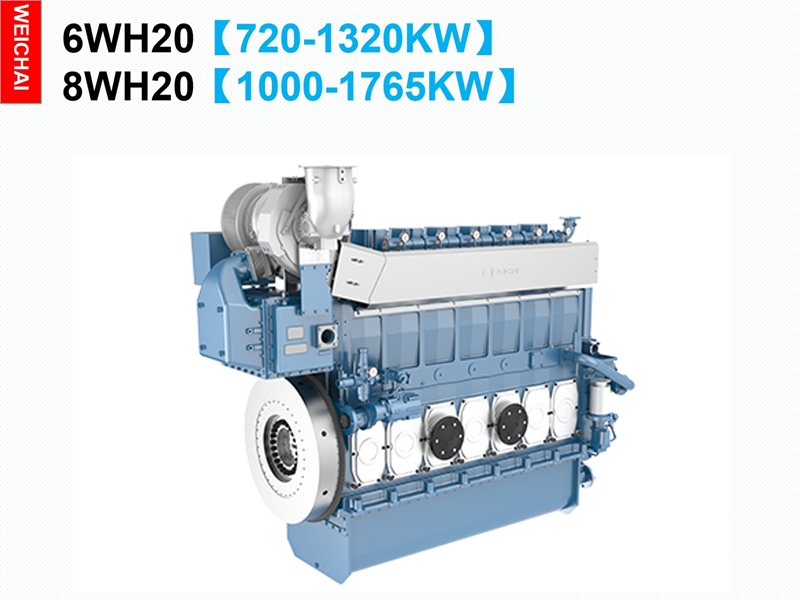

| WH20 Engine Parameter | ||
| 型式 Type | 直列、四冲程、直喷、涡轮增压、不可逆转 In-line,Four strokes, Turbocharger, Non-reversible | |
| 气缸数 No. of cylinders | 6/8 | |
| 气缸直径 Cylinder bore | mm | 200 |
| 活塞行程 Piston stroke | mm | 300 |
| 总排量 Total displacement | L | 56.55/75.39 |
| 机油消耗率 Lubricating oil consumption | g/kW·h | ≤0.8 |
| 噪声 Noise | dB(A) | ≤110 |
| 起动方式 Starting method | 气起动和电起动 Air motor or electric motor | |
| 最低工作稳定转速(RPM) Minimum stable speed | r/min | 400 |
| 整机质量 Net weight | kg | 6 Cylinders: 9800 8 Cylinders: 11800 |
| 曲轴旋转方向（面向飞轮端） Direction of crankshaft rotation (facing the flywheel end) | 逆时针 Anticlockwise | |
| 外形尺寸(长×宽×高) Overall dimension | mm | 6 Cylinders: 3532×1365×2642 8 Cylinders: 4132×1365×2642 |
