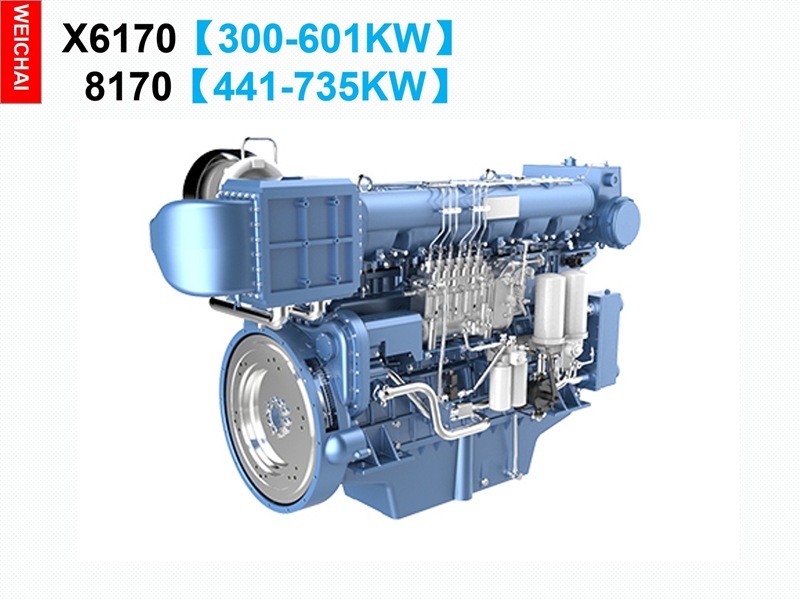

WEICHAI X6170 8170

X6170ZC408-1 300KW 1000RPM

X6170ZC450-1 330KW 1000RPM

X6170ZC540-1 397KW 1000RPM

X6170ZC450-2 330KW 1200RPM

X6170ZC480-2 353KW 1200RPM

X6170ZC540-2 397KW 1200RPM

X6170ZC580-3 426KW 1350RPM

X6170ZC608-3 447KW 1350RPM

X6170ZC620-2 456KW 1200RPM

X6170ZC650-2 478KW 1200RPM

X6170ZC620-4 456KW 1500RPM

X6170ZC680-3 500KW 1350RPM

X6170ZC735-3 540KW 1350RPM

X6170ZC756-5 556KW 1500RPM

X6170ZC818-5 601KW 1500RPM

8170ZC600-1 441KW 1000RPM

8170ZC720-2 530KW 1200RPM

8170ZC818-3 601KW 1350RPM

8170ZC900-3 661KW 1350RPM

8170ZC900-5 661KW 1500RPM

8170ZC1000-5 735KW 1500RPM

Engine	Model	Air Intake method	Rated power	Speed	Oil supply method	Emission level	Power Classification
Engine	Model	Air Intake method	（kW/Ps）	（r/min）	Oil supply method	Emission level	Power Classification
X6170	X6170ZC408-1	Turbocharged, intercooled	300/408	1000	Fuel injection pump	IMOⅡ	P1
	X6170ZC450-1	Turbocharged, intercooled	330/450	1000	Fuel injection pump	IMOⅡ	P1
	X6170ZC540-1	Turbocharged, intercooled	397/540	1000	Fuel injection pump	IMOⅡ	P1
	X6170ZC450-2	Turbocharged, intercooled	330/450	1200	Fuel injection pump	IMOⅡ	P1
	X6170ZC480-2	Turbocharged, intercooled	353/480	1200	Fuel injection pump	IMOⅡ	P1
	X6170ZC540-2	Turbocharged, intercooled	397/540	1200	Fuel injection pump	IMOⅡ	P1
	X6170ZC580-3	Turbocharged, intercooled	426/580	1350	Fuel injection pump	IMOⅡ	P1
	X6170ZC608-3	Turbocharged, intercooled	447/608	1350	Fuel injection pump	IMOⅡ	P1
	X6170ZC620-2	Turbocharged, intercooled	456/620	1200	Fuel injection pump	IMOⅡ	P1
	X6170ZC650-2	Turbocharged, intercooled	478/650	1200	Fuel injection pump	IMOⅡ	P1
	X6170ZC620-4	Turbocharged, intercooled	456/620	1500	Fuel injection pump	IMOⅡ	P1
	X6170ZC680-3	Turbocharged, intercooled	500/680	1350	Fuel injection pump	IMOⅡ	P1
	X6170ZC735-3	Turbocharged, intercooled	540/735	1350	Fuel injection pump	IMOⅡ	P1
	X6170ZC756-5	Turbocharged, intercooled	556/756	1500	Fuel injection pump	IMOⅡ	P1
	X6170ZC818-5	Turbocharged, intercooled	601/818	1500	Fuel injection pump	IMOⅡ	P1
8170	8170ZC600-1	Turbocharged, intercooled	441/600	1000	Fuel injection pump	IMOⅡ	P1
	8170ZC720-2	Turbocharged, intercooled	530/720	1200	Fuel injection pump	IMOⅡ	P1
	8170ZC818-3	Turbocharged, intercooled	601/818	1350	Fuel injection pump	IMOⅡ	P1
	8170ZC900-3	Turbocharged, intercooled	661/900	1350	Fuel injection pump	IMOⅡ	P1
	8170ZC900-5	Turbocharged, intercooled	661/900	1500	Fuel injection pump	IMOⅡ	P1
	8170ZC1000-5	Turbocharged, intercooled	735/1000	1500	Fuel injection pump	IMOⅡ	P1

X6170 Engine Parameter
型式 Type		直列、四冲程、直喷、涡轮增压、不可逆转 In-line,Four strokes, Turbocharger, Non-reversible
气缸数 No. of cylinders		6
气缸直径 Cylinder bore	mm	170
活塞行程 Piston stroke	mm	200
总排量 Total displacement	L	27.24
机油消耗率 Lubricating oil consumption	g/kW·h	≤0.5
噪声 Noise	dB(A)	≤105
起动方式 Starting method		气起动和电起动 Air motor or electric motor
最低工作稳定转速(RPM) Minimum stable speed	r/min	450-650
整机质量 Net weight	kg	3100
曲轴旋转方向（面向飞轮端） Direction of crankshaft rotation (facing the flywheel end)		逆时针 Anticlockwise
外形尺寸(长×宽×高) Overall dimension	mm	2463×1200×1650
8170 Engine Parameter
型式 Type		V型、四冲程、直喷、涡轮增压、不可逆转 V-Type,Four strokes, Turbocharger, Non-reversible
气缸数 No. of cylinders		8
气缸直径 Cylinder bore	mm	170
活塞行程 Piston stroke	mm	200
总排量 Total displacement	L	36.32
机油消耗率 Lubricating oil consumption	g/kW·h	≤0.5
噪声 Noise	dB(A)	≤105dB(A)
起动方式 Starting method		气起动和电起动 Air motor or electric motor
最低工作稳定转速(RPM) Minimum stable speed	r/min	450-650
整机质量 Net weight	kg	3800
曲轴旋转方向（面向飞轮端） Direction of crankshaft rotation (facing the flywheel end)		逆时针 Anticlockwise
外形尺寸(长×宽×高) Overall dimension	mm	2650×1040×1818
