WEICHAI 6WH17

WEICHAI 6WH17C650-1 478KW 1000RPM

WEICHAI 6WH17C680-2 500KW 1200RPM

WEICHAI 6WH17C700-1 515KW 1000RPM

WEICHAI 6WH17C718-2 528KW 1200RPM

WEICHAI 6WH17C750-2 551KW 1200RPM

WEICHAI 6WH17C850-2 625KW 1200RPM

WEICHAI 6WH17C900-3 661KW 1350RPM

WEICHAI 6WH17C900-5 661KW 1500RPM

WEICHAI 6WH17C1000-5 735KW 1500RPM

WEICHAI 6WH17C1100-5 810KW 1500RPM

WEICHAI 12WH17C1224-2 900KW 1200RPM

WEICHAI 12WH17C1360-2 1000KW 1200RPM

WEICHAI 12WH17C1496-2 1100KW 1200RPM

WEICHAI 12WH17C1564-5 1150KW 1500RPM

WEICHAI 12WH17C1700-5 1250KW 1500RPM

WEICHAI 12WH17C1836-5 1350KW 1500RPM

WEICHAI 12WH17C1972-5 1450KW 1500RPM

WEICHAI 12WH17C2203-5 1620KW 1500RPM

Engine	Model	Air Intake method	Rated power	Speed	Oil supply method	Emission level	Power Classification
Engine	Model	Air Intake method	（kW/Ps）	（r/min）	Oil supply method	Emission level	Power Classification
6WH17	6WH17C650-1	Turbocharged, intercooled	478/650	1000	电控共轨	IMOⅡ	P1
	6WH17C680-2	Turbocharged, intercooled	500/680	1200	Common Rail Direct Injection	IMOⅡ	P1
	6WH17C700-1	Turbocharged, intercooled	515/700	1000	Common Rail Direct Injection	IMOⅡ	P1
	6WH17C718-2	Turbocharged, intercooled	528/718	1200	Common Rail Direct Injection	IMOⅡ	P1
	6WH17C750-2	Turbocharged, intercooled	551/750	1200	Common Rail Direct Injection	IMOⅡ	P1
	6WH17C850-2	Turbocharged, intercooled	625/850	1200	Common Rail Direct Injection	IMOⅡ	P1
	6WH17C900-3	Turbocharged, intercooled	661/900	1350	Common Rail Direct Injection	IMOⅡ	P1
	6WH17C900-5	Turbocharged, intercooled	661/900	1500	Common Rail Direct Injection	IMOⅡ	P1
	6WH17C1000-5	Turbocharged, intercooled	735/1000	1500	Common Rail Direct Injection	IMOⅡ	P1
	6WH17C1100-5*	Turbocharged, intercooled	810/1100	1500	Common Rail Direct Injection	IMOⅡ	P2
12WH17	12WH17C1224-2*	Turbocharged, intercooled	900/1224	1200	Common Rail Direct Injection	IMOⅡ	P1
	12WH17C1360-2*	Turbocharged, intercooled	1000/1360	1200	Common Rail Direct Injection	IMOⅡ	P1
	12WH17C1496-2	Turbocharged, intercooled	1100/1496	1200	Common Rail Direct Injection	IMOⅡ	P1
	12WH17C1564-5	Turbocharged, intercooled	1150/1564	1500	Common Rail Direct Injection	IMOⅡ	P1
	12WH17C1700-5	Turbocharged, intercooled	1250/1700	1500	Common Rail Direct Injection	IMOⅡ	P1
	12WH17C1836-5	Turbocharged, intercooled	1350/1836	1500	Common Rail Direct Injection	IMOⅡ	P1
	12WH17C1972-5	Turbocharged, intercooled	1450/1972	1500	Common Rail Direct Injection	IMOⅡ	P1
	12WH17C2203-5*	Turbocharged, intercooled	1620/2203	1500	Common Rail Direct Injection	IMOⅡ	P2

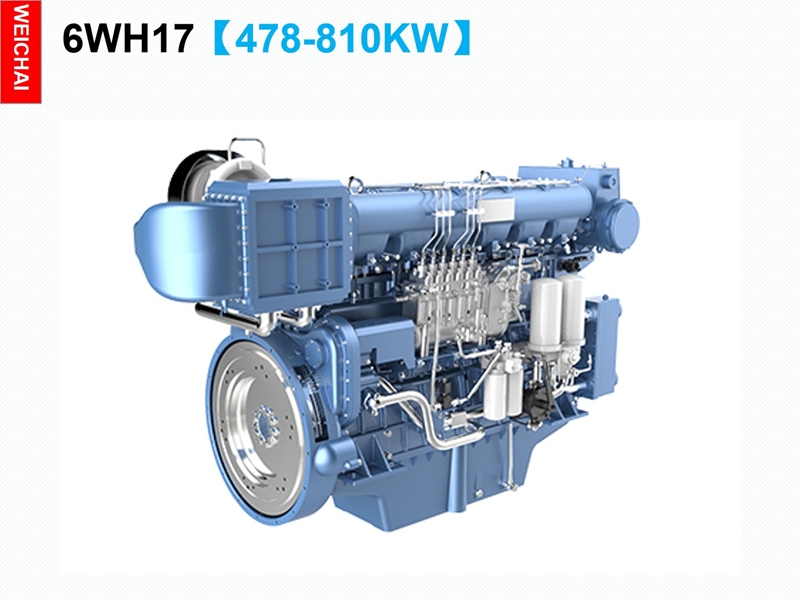

6WH17 Engine Parameter
型式 Type		直列、四冲程、直喷、涡轮增压、不可逆转 In-line,Four strokes, Turbocharger, Non-reversible
气缸数 No. of cylinders		6
气缸直径 Cylinder bore	mm	170
活塞行程 Piston stroke	mm	222
总排量 Total displacement	L	30.22
机油消耗率 Lubricating oil consumption	g/kW·h	≤0.3
噪声 Noise	dB(A)	≤111
起动方式 Starting method		气起动和电起动 Air motor or electric motor
最低工作稳定转速(RPM) Minimum stable speed	r/min	500
整机质量 Net weight	kg	3500
曲轴旋转方向（面向飞轮端） Direction of crankshaft rotation (facing the flywheel end)		逆时针 Anticlockwise
外形尺寸(长×宽×高) Overall dimension	mm	2355×1210×1615
12WH17 Engine Parameter
型式 Type		V型、四冲程、直喷、涡轮增压、不可逆转 V-Type,Four strokes, Turbocharger, Non-reversible
气缸数 No. of cylinders		12
气缸直径 Cylinder bore	mm	170
活塞行程 Piston stroke	mm	200
总排量 Total displacement	L	54.48
机油消耗率 Lubricating oil consumption	g/kW·h	≤0.3g/kW·h
噪声 Noise	dB(A)	≤111dB(A)
起动方式 Starting method		气起动和电起动 Air motor or electric motor
最低工作稳定转速(RPM) Minimum stable speed	r/min	650±30
整机质量 Net weight	kg	5300
曲轴旋转方向（面向飞轮端） Direction of crankshaft rotation (facing the flywheel end)		逆时针 Anticlockwise
外形尺寸(长×宽×高) Overall dimension	mm	2324×1552×1988
