6WH25LC1700-6.5* 1250KW650RPM
6WH25LC2000-7.5 1470KW 750RPM
6WH25LC2204-9 1620KW 900RPM
6WH25LC2448-9 1800KW 900RPM
6WH25LC2448-1 1800KW 1000RPM
6WH25LC2734-1* 2010KW 1000RPM
8WH25LC2200-6* 1618KW 600RPM
8WH25LC2500-7.5* 1838KW 750RPM
8WH25LC2720-7.5* 2000KW 750RPM
8WH25LC3000-9 2207KW 900RPM
8WH25LC3265-1 2400KW 1000RPM
8WH25LC3300-9* 2427KW 900RPM
8WH25LC3645-1* 2680KW 1000RPM
| Engine | Model | Rated power | Speed |
| （kW/Ps） | （r/min） | ||
| WH25 | 6WH25LC1700-6.5* | 1250/1700 | 650 |
| 6WH25LC2000-7.5 | 1470/2000 | 750 | |
| 6WH25LC2204-9 | 1620/2204 | 900 | |
| 6WH25LC2448-9 | 1800/2448 | 900 | |
| 6WH25LC2448-1 | 1800/2448 | 1000 | |
| 6WH25LC2734-1* | 2010/2734 | 1000 | |
| 8WH25LC2200-6* | 1618/2200 | 600 | |
| 8WH25LC2500-7.5* | 1838/2500 | 750 | |
| 8WH25LC2720-7.5* | 2000/2720 | 750 | |
| 8WH25LC3000-9 | 2207/3000 | 900 | |
| 8WH25LC3265-1 | 2400/3265 | 1000 | |
| 8WH25LC3300-9* | 2427/3300 | 900 | |
| 8WH25LC3645-1* | 2680/3645 | 1000 |

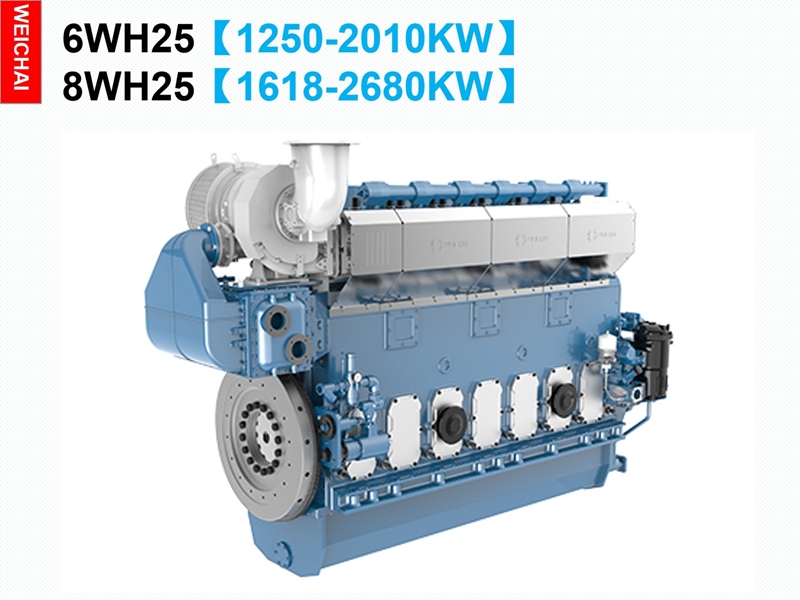

| WH25 Engine Parameter | ||
| 型式 Type | 直列、四冲程、直喷、涡轮增压、不可逆转 In-line,Four strokes, Turbocharger, Non-reversible | |
| 气缸数 No. of cylinders | 6 and 8 | |
| 气缸直径 Cylinder bore | mm | 250 |
| 活塞行程 Piston stroke | mm | 330 |
| 总排量 Total displacement | L | 97.19L/129.59L |
| 机油消耗率 Lubricating oil consumption | g/kW·h | ≤0.5g/kW·h |
| 噪声 Noise | dB(A) | ≤110 |
| 起动方式 Starting method | 气起动和电起动 Air motor or electric motor | |
| 最低工作稳定转速(RPM) Minimum stable speed | r/min | 400 |
| 整机质量 Net weight | kg | 6 Cylinders:16800 8 Cylinders: 20000 |
| 曲轴旋转方向（面向飞轮端） Direction of crankshaft rotation (facing the flywheel end) | 逆时针 Anticlockwise | |
| 外形尺寸(长×宽×高) Overall dimension | mm | 6 Cylinders: 4356×1710×2829 8 Cylinders: 5136×1710×2829 |
