Yanmar 6N330 Spare parts (Overhaul) List

NO.	PARTS NO.	DISCRIPTION	DISCRIPTION	QTY	UNIT

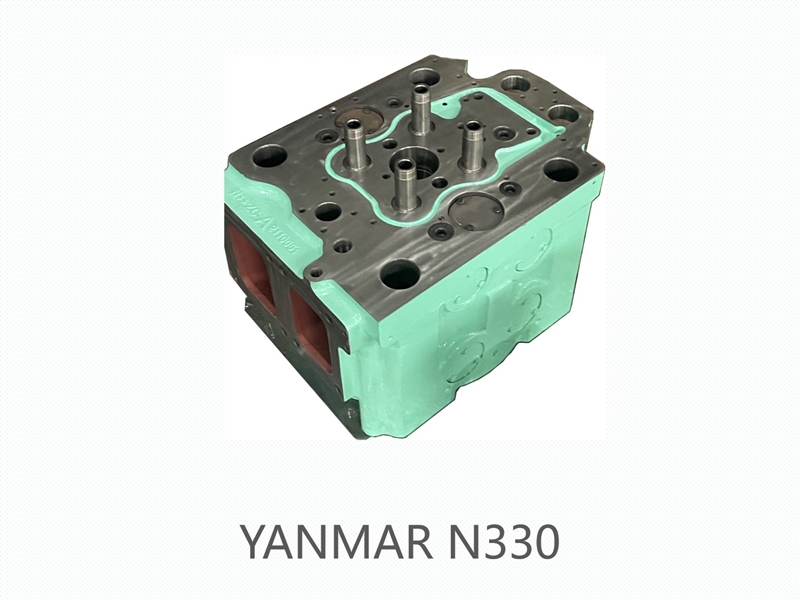

FIG. 18 CYLINDER HEAD ASSY
1	132653-11100	Suction Valve	进气阀	24	PCS
2	132654-11122	Exhaust Valve	排气阀	24	PCS
3	132654-11161	Suction Valve guide	进气阀导管	24	PCS
4	132654-11171	Exhaust Valve guide	排气阀导管	24	PCS
5	132653-11580	Seal Valve Stem	阀杆密封	24	PCS
6	132653-11560	Rotator, Valve	转阀器	24	PCS
7	132654-11840	Suction Valve Seat	进气阀座	24	PCS
8	132654-11092	Exhaust Valve Seat (cooling)	冷却式阀座(排气阀)	24	PCS
9	132654-11800	O-Ring (Up, valve seat)	O型圈(排气阀座)	24	PCS
10	132654-11810	O-Ring (lower, valve seat)	O形环(排气阀座)	24	PCS
11	132653-11140	Spring Holder	弹簧阀座(下侧)	24	PCS
12	132654-11751	Sleeve Nozzle	水封套管	24	PCS
FIG. 1 CYLINDER BLOCK & LINER
1	132654-01121	Protect Ring	保护环	6	PCS
2	159666-01130	Pin	销(保护环定位用)	6	PCS
3	132654-01320	Head Packing ( t = 1.0 mm)	盖密封件	6	PCS
4	132658-01370	Rubber Packing cyl liner	胶垫	6	PCS
5	132654-01172/CCS	Cylinder Liner	(保护环用)气缸套（重油）	6	PCS
6	132654-01380	Rubber Packing cyl liner	胶垫	6	PCS
7	132654-01390	Rubber Packing cyl liner	胶垫	6	PCS
FIG. 2 CYLINDER SIDE COVER
1	132654-01412	Packing	密封垫（气缸侧盖）	12	PCS
FIG. 4 COOLING CHAMBER & CW. CHAMBER COVER, LO. GALLERY
1	24326-000300	O-Ring	O型圈	24	PCS
2	24316-000280	O-Ring	橡胶圈	24	PCS
3	24316-000210	O-Ring	橡胶圈	12	PCS
4	24316-000240	O-Ring	橡胶圈	12	PCS
5	132654-01710	Packing	密封垫(冷却体用)	6	PCS
FIG. 5 AIR CHAMBER COVER & CAM CHAMBER COVER
1	132654-01610	SEALED GASKET	密封件(空气箱用)	6	PCS
2	132654-01760	SEALED GASKET	密封件(凸轮箱盖)	6	PCS
FIG. 9 MAIN METAL
1	132654-02132	Main Upper Metal	主轴承瓦(上)	7	PCS
2	132654-02124	Main Lower Metal	主轴承瓦(下)	7	PCS
3	132654-02181	Thrust Upper Metal	止推环(上)	2	PCS
4	132654-02171	Thrust Lower Metal	止推环(下)	2	PCS
FIG. 19 VALVE ROCKER ARM SHAFT SUPPORT & BONNET
1	132654-11231	Adjust Screw Assy	调整螺钉	12	PCS
2	26772-220002	Lock Nut M22X1.5 ( GB/T6185.2 M22X1.5 )	螺母	12	PCS
3	132654-11310	Sealed Gasket	密封垫(机壳)	6	PCS
4	132654-11270	Shaft HFO	(燃料阀冷却用)阀杆轴	2	PCS
5	132654-11240	Bush	衬套(进排气摇臂)	6	PCS
6	132654-11590	Valve bridge assy	阀顶架	12	PCS
7	153623-11350	Seat	硬块	24	PCS
8	832654-11180	rocker arm asy	进排气摇臂组件	12	pcs
FIG. 20 SUCTION BEND
1	26152-200552	Bolt M20X55	螺栓	6	PCS
2	26152-202302	Bolt M20X240 ( GB/T5785 M20X240 )	螺栓	12	PCS
FIG. 21 EXH.MANIFOLD & COVER TURBO. FW SIDE
1	132654-13201	Gasket	密封垫(气缸盖排气出口用)	6	PCS
2	132654-13770	EXPANSION JOINT	排气管用膨胀节(150A)	6	PCS
FIG. 23 EXH CONNECTING PIPE
1	153836-13650	GASKET ( VTR 304 )	垫片(VTR304用)	2	PCS
2		Gasket (MET304SR)
FIG. 24 VALVE MECHANISM
1	24321-000500	O-Ring	密封圈	12	PCS
2	24321-000600	O-Ring	密封圈	12	PCS
3	24321-000650	O-Ring	密封圈	12	PCS
FIG. 27 INDICATOR COOK & SAFETY VALVE
1	Z1-53605-1510	Coock Body Comp	安全示功阀总装	2	SET
FIG. 37 PISTON
1		Piston Ring Set	活塞环	6	PCS
2	132654-22350	Piston Pin Circlip	C形止动环	12	PCS
FIG. 38 CONNECTING ROD
1	132654-23333	Crank Pin Metal (Upper)	曲轴销轴瓦(上)	6	PCS
2	132654-23342	Crank Pin Metal (Lower)	曲轴销轴瓦(下)	6	PCS
3	132654-23221/CCS	Rod Bolt	连杆螺栓	6	PCS
FIG. 61 FO INJECTION VALVE
1	142613-53361	O-Ring	O型圈	12	PCS
2	24326-000900	O-Ring	密封垫	6	PCS
3	24316-000850	O-Ring	O型密封圈(运动用)	6	PCS
4	142613-53200	Paralel Pin	销	24	PCS
5	132654-11771	Gasket 44,4X30,74X2,5 MM	密封垫(喷油器)	6	PCS
FIG. 69 FO INJECTION PIPE
1	132654-59800/CCS	Main pipe	燃油喷射管半组装	1	PCS
2	132654-59510	Seal Washer	胶垫	6	PCS
3	24326-000450	O-Ring	橡胶圈	12	PCS
4	24326-000500	O-Ring	橡胶圈	12	PCS
FIG. 84 STARTING VALVE
1	732654-71010	Valve Assy, Starting	启动阀	1	SET
2	24321-000500	O-Ring	密封圈	1	PCS
FIG 138. FO INJECTION PUMP
1	HP7200-200000	FO INJECTION PUMP	高压油泵	6	SET
2	513000060	O-Ring	O型密封圈	24	PCS
3	513010020	O-Ring	O型圈	24	PCS
4	513010011	O-Ring	O型圈	24	PCS
5	513000074	O-Ring	O型密封圈	24	PCS
