ZICHAI ZC6270

ZC6270ZLC 1920KW 800RPM

ZC6270ZLC-1 1800KW 750RPM

ZC6270ZLC-2 1620KW 750RPM

ZC6270ZLC-3 2190KW 800RPM

ZC6270ZLC-4 2100KW 800RPM

ZC6270ZLC-5 1470KW 750RPM

ZC6270ZLC-6 1324KW 650RPM

ZC6270ZLC-7 1177KW 650RPM

ZC6270ZLC-8 1103KW 650RPM

ZC6270ZLC-9 1030KW 600RPM

ZC6270ZLC-10 957KW 600RPM

ZC6270ZLC-11 882KW 600RPM

ZC6270ZLC-12 735KW 600RPM

ZC6270ZLC-13 2190KW 800RPM

ZC6270ZLC-15 2000KW 750RPM

ZC6270ZLC-16 1840KW 700RPM

型号 Model	ZC6270ZLC	ZC6270ZLC-1	ZC6270ZLC-2	ZC6270ZLC-3	ZC6270ZLC-4	ZC6270ZLC-5	ZC6270ZLC-6	ZC6270ZLC-7
型式 Type	直列、四冲程、直喷、涡轮增压、不可逆转 In-line,Four strokes, Turbocharger, Non-reversible
持续功率(kW/PS) Rated power	1920/2610	1800/2450	1620/2200	2190/2978	2100/2856	1470/2000	1324/1800	1177/1600
持续转速(rpm) Rated speed	800	750	750	800	800	750	650	650
气缸直径(mm) Cylinder bore	270
活塞行程(mm) Piston stroke	385
气缸数 No. of cylinders	6
总排量(L) Total displacement	132.3
压缩比 Compression ratio	15.08
最低工作稳定转速(RPM) Minimum stable speed	320	300	300	320	320	300	260	260
活塞平均速度(m/s) Mean piston speed	10.267	9.625	9.625	10.267	10.267	9.625	8.342	8.342
平均有效压力(Mpa) Mean effective pressure	2.18	2.18	1.96	2.49	2.39	1.78	1.85	1.64
增压压力(绝对)(Mpa) Turbocharged pressure (Absolute)	0.41±0.01	0.394±0.01	0.38±0.01	0.43±0.01	0.36±0.01	0.36±0.01	0.37±0.01	0.35±0.01
最高爆发压力(Mpa) Maximum explosive pressure	≤19.5	≤19.5	≤19.0	≤19.5	≤19.5	≤18.5	≤18.5	≤18.0
各缸排气温度(℃) Each cylinder exhaust temperature	370∽450
涡轮前排温(℃) Exhaust temperature before turbocharger	480∽530
燃油消耗率(g/kw.h) Fuel oil consumption	182
机油消耗率(g/kw.h) Lubricating oil consumption	1.1
发火顺序 Fire order	1-2-4-6-5-3(顺时针)(clockwise) 1-3-5-6-4-2(逆时针)(Counter-clockwise)
起动方式 Starting method	压缩空气启动 Started by compressed air
供油正时 Fuel injection timing	上死点前10-13.5°， 10-13.5 ° before top dead center
起动空气压力(Mpa) Starting aiir pressure	最大启动压力：2.94MPa，最小启动压力：1.1MPa Max starting pressure: 2.94MPa, Min starting pressure: 1.1MPa

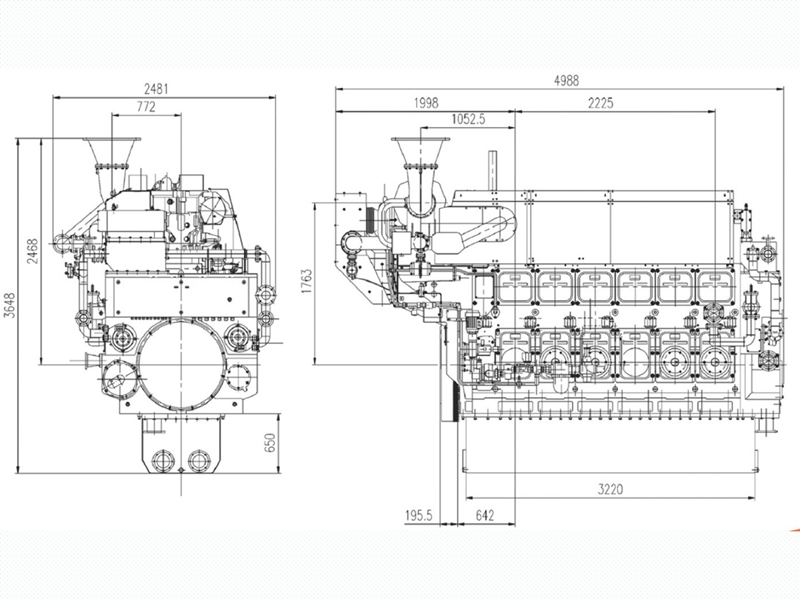

外形尺寸(长×宽×高) Overall dimension	4988×2481×3648
吊缸高度 Piston hang height	3482
整机质量（kg） Net weight	26000

型号 Model	ZC6270ZLC-8	ZC6270ZLC-9	ZC6270ZLC-10	ZC6270ZLC-11	ZC6270ZLC-12	ZC6270ZLC-13	ZC6270ZLC-15	ZC6270ZLC-16
型式 Type	直列、四冲程、直喷、涡轮增压、不可逆转 In-line,Four strokes, Turbocharger, Non-reversible
持续功率(kW/PS) Rated power	1103/1500	1130/1400	957/1300	1620/2200	735/1000	2190/2978	2000/2620	1840/2200
持续转速(rpm) Rated speed	650	600	600	600	600	800	750	700
气缸直径(mm) Cylinder bore	270
活塞行程(mm) Piston stroke	385
气缸数 No. of cylinders	6
总排量(L) Total displacement	132.3
压缩比 Compression ratio	15.08
最低工作稳定转速(RPM) Minimum stable speed	260	240	240	240	240	320	300	280
活塞平均速度(m/s) Mean piston speed	8.342	7.7	7.7	7.7	7.7	10.267	9.625	8.983
平均有效压力(Mpa) Mean effective pressure	1.54	1.45	1.45	1.33	1.11	2.49	2.42	2.38
增压压力(绝对)(Mpa) Turbocharged pressure (Absolute)	0.34±0.01	0.32±0.01	0.34±0.01	0.30±0.01	0.27±0.01	0.43±0.01	0.394±0.01	0.38±0.01
最高爆发压力(Mpa) Maximum explosive pressure	≤17.5	≤17.0	≤17.5	≤16.0	≤15.0	≤19.5	≤19.5	≤19.0
各缸排气温度(℃) Each cylinder exhaust temperature	370∽450
涡轮前排温(℃) Exhaust temperature before turbocharger	480∽530
燃油消耗率(g/kw.h) Fuel oil consumption	182
机油消耗率(g/kw.h) Lubricating oil consumption	1.1
发火顺序 Fire order	1-2-4-6-5-3(顺时针)(clockwise) 1-3-5-6-4-2(逆时针)(Counter-clockwise)
起动方式 Starting method	压缩空气启动 Started by compressed air
供油正时 Fuel injection timing	上死点前10-13.5°， 10-13.5 ° before top dead center
起动空气压力(Mpa) Starting aiir pressure	最大启动压力：2.94MPa，最小启动压力：1.1MPa Max starting pressure: 2.94MPa, Min starting pressure: 1.1MPa
外形尺寸(长×宽×高) Overall dimension	4988×2481×3648
吊缸高度 Piston hang height	3482
整机质量（kg） Net weight	26000
