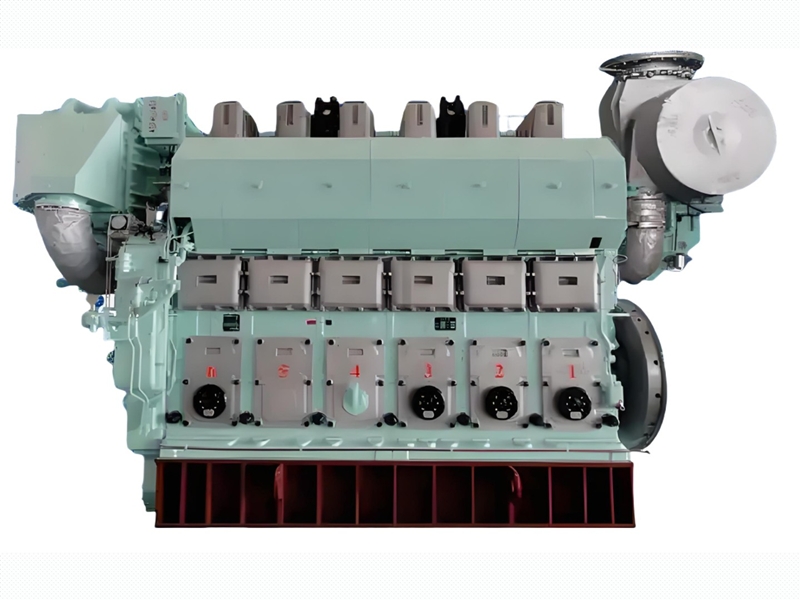

ZICHAI 6N350

6N350ZLC 3583KW 650RPM

6N350ZLC-1 3310KW 650RPM

6N350ZLC-2 3161KW 650RPM

6N350ZLC-3 3087KW 600RPM

6N350ZLC-4 2940KW 600RPM

型号 Model	6N350ZLC	6N350ZLC-1	6N350ZLC-2	6N350ZLC-3	6N350ZLC-4
型式 Type	直列、四冲程、直喷、涡轮增压、不可逆转 In-line,Four strokes, Turbocharger, Non-reversible
持续功率(kW/PS) Rated power	3583/4875	3310/4500	3161/4300	3087/4200	2940/4000
持续转速(rpm) Rated speed	650	650	650	600	600
气缸直径(mm) Cylinder bore	350
活塞行程(mm) Piston stroke	450
气缸数 No. of cylinders	6
总排量(L) Total displacement	259.77
压缩比 Compression ratio	13.5
最低工作稳定转速(RPM) Minimum stable speed	260	260	260	240	240
活塞平均速度(m/s) Mean piston speed	9.75	9.75	9.75	9	9
平均有效压力(Mpa) Mean effective pressure	2.546	2.352	2.246	2.377	2.264
增压压力(绝对)(Mpa) Turbocharged pressure (Absolute)	0.46±0.02	0.44±0.02	0.42±0.02	0.43±0.02	0.42±0.02
最高爆发压力(Mpa) Maximum explosive pressure	≤17	≤16.5	≤16	≤16.5	≤16
各缸排气温度(℃) Each cylinder exhaust temperature	≤470
涡轮前排温(℃) Exhaust temperature before turbocharger	≤600
燃油消耗率(g/kw.h) Fuel oil consumption	196(MCR),190(75%MCR)
机油消耗率(g/kw.h) Lubricating oil consumption	0.9
发火顺序 Fire order	1-2-4-6-5-3(顺时针)(clockwise) 1-3-5-6-4-2(逆时针)(Counter-clockwise)
起动方式 Starting method	压缩空气启动 Started by compressed air
供油正时 Fuel injection timing	上死点前10-13.5°， 10-13.5 ° before top dead center
起动空气压力(Mpa) Starting aiir pressure	最大启动压力：2.94MPa，最小启动压力：1.1MPa Max starting pressure: 2.94MPa, Min starting pressure: 1.1MPa
外形尺寸(长×宽×高) Overall dimension	5600×1850×3560
吊缸高度 Piston hang height	3323
整机质量（kg） Net weight	37500
