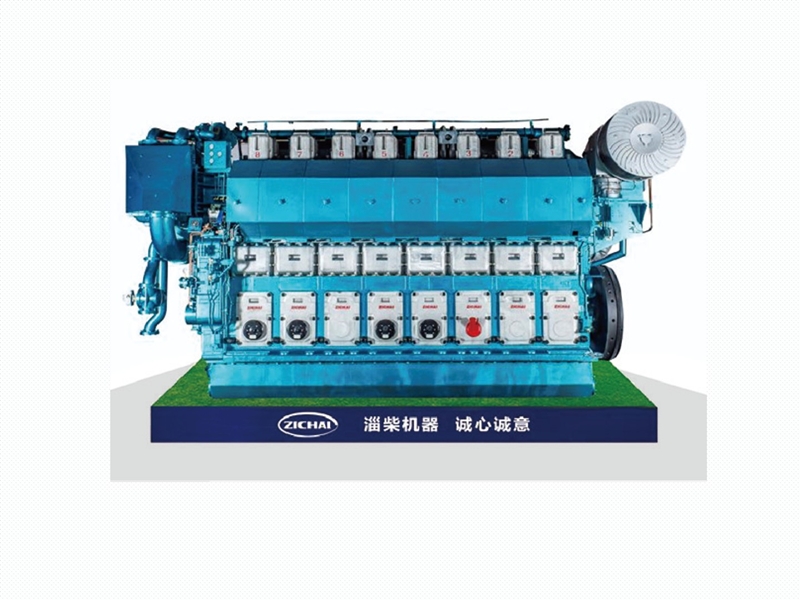

ZICHAI-8N350

8N350ZLC 4778KW 650RPM

8N350ZLC-1 4631KW 650RPM

8N350ZLC-2 4410KW 650RPM

8N350ZLC-3 4263KW 600RPM

8N350ZLC-4 4043KW 600RPM

8N350ZLC-5 3822KW 600RPM

8N350ZLC-6 3310KW 600RPM

8N350ZLC-7 2942KW 600RPM

8N350ZLC-8 5292KW 650RPM

型号 Model	8N350ZLC	8N350ZLC-1	8N350ZLC-2	8N350ZLC-3	8N350ZLC-4	8N350ZLC-5
型式 Type	直列、四冲程、直喷、涡轮增压、不可逆转 In-line,Four strokes, Turbocharger, Non-reversible			直列、四冲程、直喷、涡轮增压、不可逆转 In-line,Four strokes, Turbocharger, Non-reversible
持续功率(kW/PS) Rated power	4778/6500	4631/6300	4410/6000	4263/5800	4043/5500	3822/5000
持续转速(rpm) Rated speed	650	650	650	600	600	600
气缸直径(mm) Cylinder bore	350			350
活塞行程(mm) Piston stroke	450			450
气缸数 No. of cylinders	8			8
总排量(L) Total displacement	346.36			346.36
压缩比 Compression ratio	13.5			13.5
最低工作稳定转速(RPM) Minimum stable speed	260	260	260	240	240	240
活塞平均速度(m/s) Mean piston speed	9.75	9.75	9.75	9	9	9
平均有效压力(Mpa) Mean effective pressure	2.547	2.468	2.351	2.462	2.335	2.207
增压压力(绝对)(Mpa) Turbocharged pressure (Absolute)	0.47±0.02	0.46±0.02	0.45±0.02	0.46±0.02	0.44±0.02	0.42±0.02
最高爆发压力(Mpa) Maximum explosive pressure	≤17	≤17	≤16.5	≤17	≤16.5	≤16
各缸排气温度(℃) Each cylinder exhaust temperature	≤470			≤470
涡轮前排温(℃) Exhaust temperature before turbocharger	≤600			≤600
燃油消耗率(g/kw.h) Fuel oil consumption	196(MCR),190(75%MCR)			196(MCR),190(75%MCR)
机油消耗率(g/kw.h) Lubricating oil consumption	0.9			0.9
发火顺序 Fire order	1-4-7-6-8-5-2-3(顺时针)(clockwise) 1-3-2-5-8-6-7-4(逆时针)(Counter-clockwise)			1-4-7-6-8-5-2-3(顺时针)(clockwise) 1-3-2-5-8-6-7-4(逆时针)(Counter-clockwise)
起动方式 Starting method	压缩空气启动 Started by compressed air			压缩空气启动 Started by compressed air
供油正时 Fuel injection timing	上死点前10-13.5°， 10-13.5 ° before top dead center			上死点前10-13.5°， 10-13.5 ° before top dead center
起动空气压力(Mpa) Starting aiir pressure	最大启动压力：2.94MPa，最小启动压力：1.1MPa Max starting pressure: 2.94MPa, Min starting pressure: 1.1MPa			最大启动压力：2.94MPa，最小启动压力：1.1MPa Max starting pressure: 2.94MPa, Min starting pressure: 1.1MPa
外形尺寸(长×宽×高) Overall dimension	6824×2655×4141			6824×2655×4141
吊缸高度 Piston hang height	3323			3323
整机质量（kg） Net weight	46000			46000
