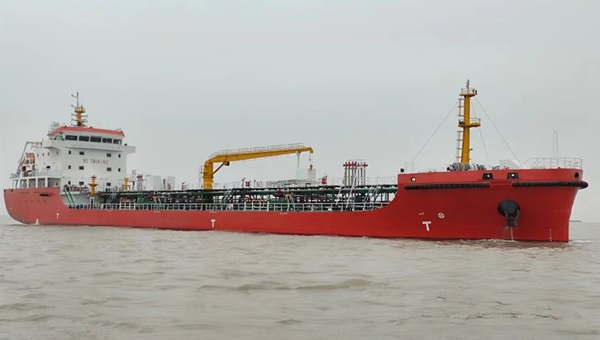

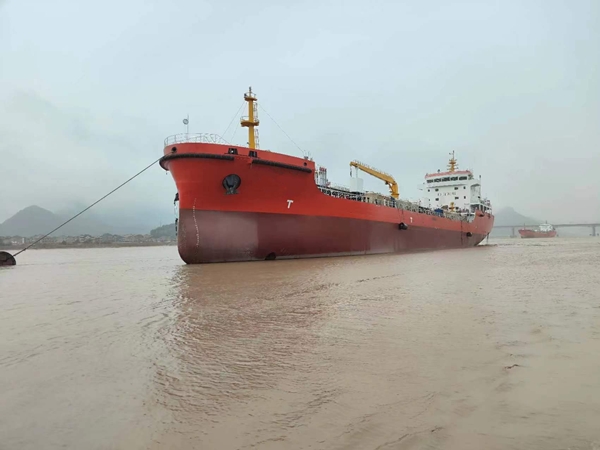

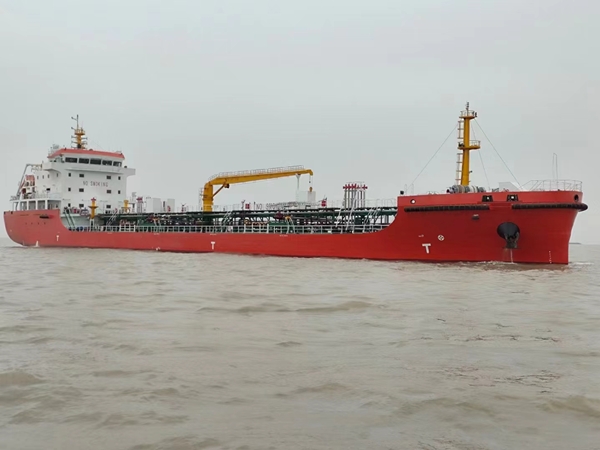

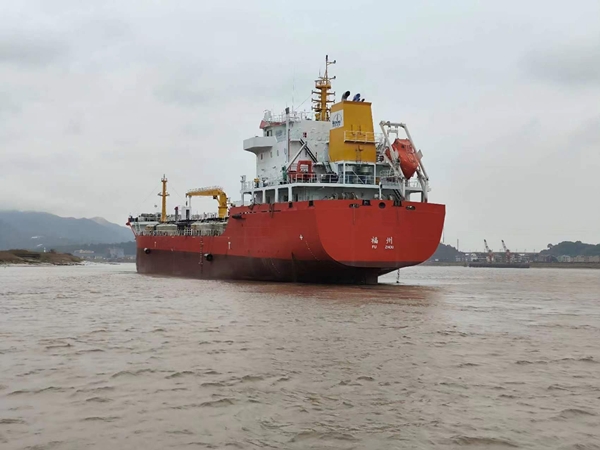

Oil tanker 8000DWT

Ship type	Oil Tanker, Double Hull	下次特检日期	2029/1/21
Gross tonnage	5,510	净吨位
Load capacity ton	7,944	Length overall	119.34
Length between vertical lines	115.6	Mould width	17.4
Mould Depth	9.1	Freeboard	2242
Average draft depth	6.87	Ship's speed	12
Ship classification symbol	★CSA	Additional hull markings	F.P. ≤ 60℃;Ice Class B;R1(D)
Marine engine classification symbol	★CSM	Marine engine additional markings	BRC;Gd-EP(VCS)
Superstructure and Deck Room	Deckhouse:17.50m,Forecastle:11.77m,Poop:27.00m	Number of Deck Layers	1,Upper Deck
Number of bulkheads	9,Fr.Nos.4,30,36,63,83,103,123,149,155	Ballast	3302
Shipyard	Linhai Huajie Shipbuilding Co., Ltd.	Ship construction location	China
Ship construction time	2024/1/22	重大改建部位的建造日期
重大改建情况		Main engine factory	GUANGZHOU DIESEL ENGINE FACTORY CO.,LTD
锅炉建造厂	Jiangyin Sanjie Industry Co.,Ltd.	Main engine manufacturing time	2023/6/15
锅炉建造时间		Main engine type * quantity	8320ZCd-10S*1;
Number of main engine cylinders * cylinder diameter * power * speed	83202427.00*625	Generator * Power * Voltage * quantity	SB-HW4-300-6P300.00400*3;
锅炉数压力受热面积 Number of boilers * Pressure * Heating surface area	10.5/45.00 m2;10.700/190.00 m2	集装箱数*规格	dk:;ho:
Number of cargo holds	12	货舱总容积 Total cargo hold capacity	8720.07 M3
舱口数及舱口尺度 Number of hatches and hatch dimensions	12*Dia.0.8	起货设备类型,安全负荷,数量
各货舱容积 Capacity of each cargo hold	NO.1C.O.T.(P)(G726.25) ;NO.1C.O.T.(S)(G707.10) ;NO.2C.O.T.(P)(G840.70) ;NO.2C.O.T.(S)(G860.86) ;NO.3C.O.T.(P)(G863.11) ;NO.3C.O.T.(S)(G842.96) ;NO.4C.O.T.(P)(G839.86) ;NO.4C.O.T.(S)(G860.01) ;NO.5C.O.T.(P)(G834.23) ;NO.5C.O.T.(S)(G814.07) ;NO.6C.O.T.(P)(G268.99) ;NO.6C.O.T.(S)(G261.93)
