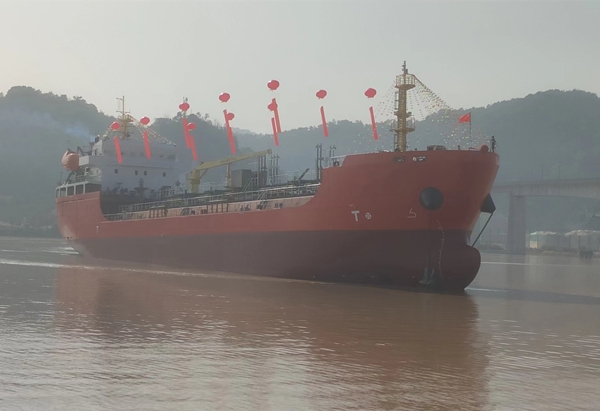

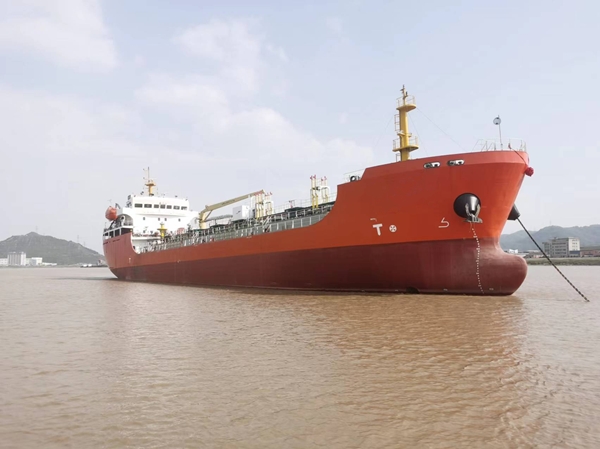

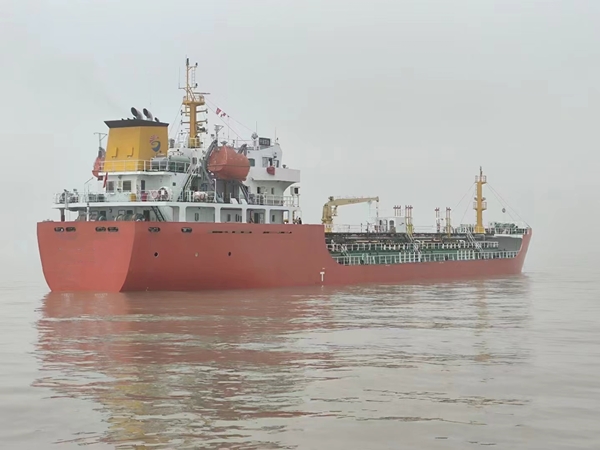

Oil tanker 5000DWT

Flag state	China	船籍港
Ship type	Oil Tanker/Asphalt Carrier(Integral Tank, Max. Cargo Temperature≤ 170°C)	Net tonnage	2028/4/27
Gross tonnage	4,027	Net tonnage
Load capacity ton	4,979	Length overall	99.83
Length between vertical lines	95	Mould width	16
Mould Depth	8	Freeboard	2062
Average draft depth	5.95	Ship's speed	11.5
Ship classification symbol	★CSA	Additional hull markings	Double Hull;F.P. ≤ 60℃;Ice Class B;Loading Computer (S, I, D);R1(D)
Marine engine classification symbol	★CSM	Marine engine additional markings	BRC;Gd-EP(VCS)
Superstructure and Deck Room	Deckhouse:17.50m,Forecastle:9.20m,Poop:25.90m	Number of Deck Layers	1,Upper Deck
Number of bulkheads	8,Fr.Nos.5,30,36,57,78,99,126,130	Ballast	2337
Shipyard	Linhai Huajie Shipbuilding Co., Ltd.	Ship construction location	China
Ship construction time	2023/4/28	重大改建部位的建造日期
重大改建情况		Main engine factory	NINGBO C.S.I. POWER & MACHINERY GROUP CO.,LTD.
锅炉建造厂	JIANGYIN SANJIE INDUSTRY CO.,LTD.	Main engine manufacturing time	2022/7/27
锅炉建造时间		Main engine type * quantity	G8300ZC30B*1;
Number of main engine cylinders * cylinder diameter * power * speed	83002206.00*600	Generator * Power * Voltage * quantity	TFXW-315M4-H250.00400*3;
锅炉数压力受热面积 Number of boilers * Pressure * Heating surface area	10.500/36.00 m2;10.700/190.00 m2	集装箱数*规格	dk:;ho:
Number of cargo holds	8	货舱总容积 Total cargo hold capacity	5976.14 M3
舱口数及舱口尺度 Number of hatches and hatch dimensions	8*Dia.1.0	起货设备类型,安全负荷,数量
各货舱容积 Capacity of each cargo hold	NO.1 C.O.T.(P)(G697.46) ;NO.1 C.O.T.(S)(G697.46) ;NO.2C.O.T.(P)(G767.13) ;NO.2C.O.T.(S)(G767.13) ;NO.3C.O.T.(P)(G767.13) ;NO.3C.O.T.(S)(G767.13) ;NO.4C.O.T.(P)(G756.35) ;NO.4C.O.T.(S)(G756.35)
