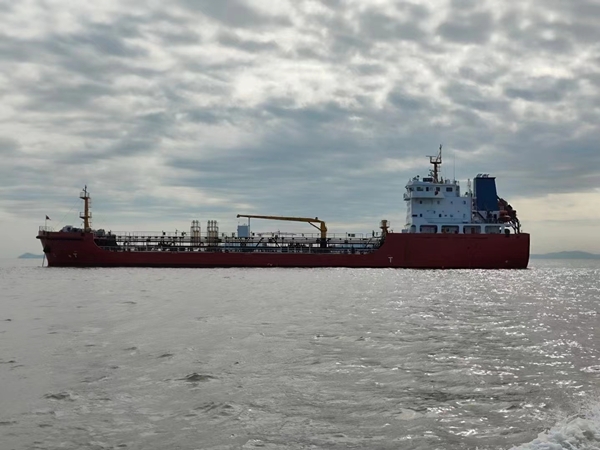

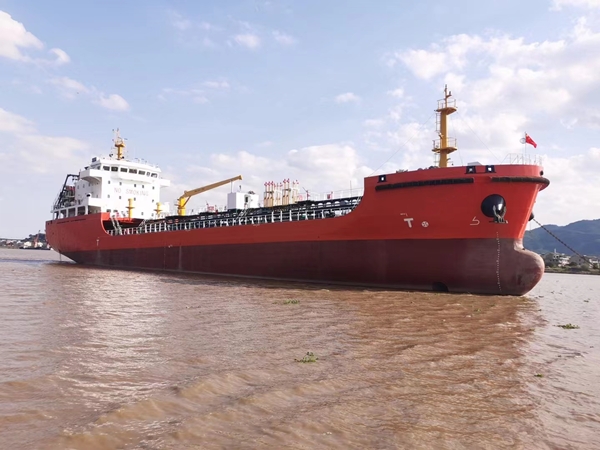

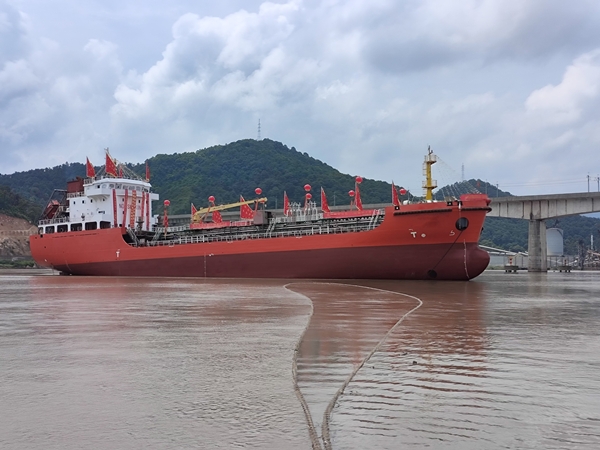

Oil tanker 5400DWT

Ship type	Oil Tanker, Double Hull, F.P.≤60℃	下次特检日期	2028/11/1
Gross tonnage	4,139	净吨位
Load capacity ton	5,387	Length overall	99.8
Length between vertical lines	95.4	Mould width	16.2
Mould Depth	8.3	Freeboard
Average draft depth	6.15	Ship's speed	11
Ship classification symbol	★CSA	Additional hull markings	Ice Class B;R1(D)
Marine engine classification symbol	★CSM	Marine engine additional markings	Gd-EP(VCS)
Superstructure and Deck Room	Deckhouse:17.60mm,Forecastle:12.30mm,Poop:25.50m	Number of Deck Layers	1,Upper Deck
Number of bulkheads	8,Fr.Nos.5,30,36,56,76,97,126,130	Ballast	2281
Shipyard	Linhai Huajie Shipbuilding Co., Ltd.	Ship construction location	China
Ship construction time	2023/11/2	重大改建部位的建造日期
重大改建情况		Main engine factory	GUANGZHOU DIESEL ENGINE FACTORY CO.,LTD
锅炉建造厂	JIANGYIN SANJIE INDUSTRY CO.,LTD.	Main engine manufacturing time	2022/12/15
锅炉建造时间		Main engine type * quantity	8320ZCd-6S*1;
Number of main engine cylinders * cylinder diameter * power * speed	83202060.00*550	Generator * Power * Voltage * quantity	SB-HW4-250-6P250.004003; SB-HW4.D-120120.004001;
锅炉数压力受热面积 Number of boilers * Pressure * Heating surface area	10.500/36.00 m2;10.700/165.00 m2	集装箱数*规格	dk:;ho:
Number of cargo holds	8	货舱总容积 Total cargo hold capacity	5847.62 M3
舱口数及舱口尺度 Number of hatches and hatch dimensions	8*Dia.1.0	起货设备类型,安全负荷,数量
各货舱容积 Capacity of each cargo hold	NO.1 C.O.T.(P)(G721.79) ;NO.1 C.O.T.(S)(G701.14) ;NO.2C.O.T.(P)(G752.60) ;NO.2C.O.T.(S)(G773.76) ;NO.3C.O.T.(P)(G737.14) ;NO.3C.O.T.(S)(G716.99) ;NO.4C.O.T.(P)(G712.02) ;NO.4C.O.T.(S)(G732.18)
