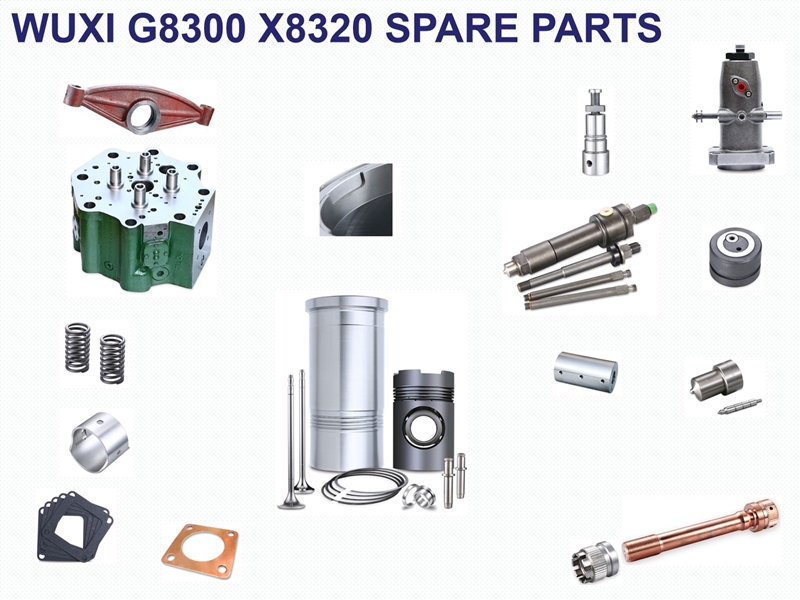

WUXI ANTAI G8300 X8320 Spare parts

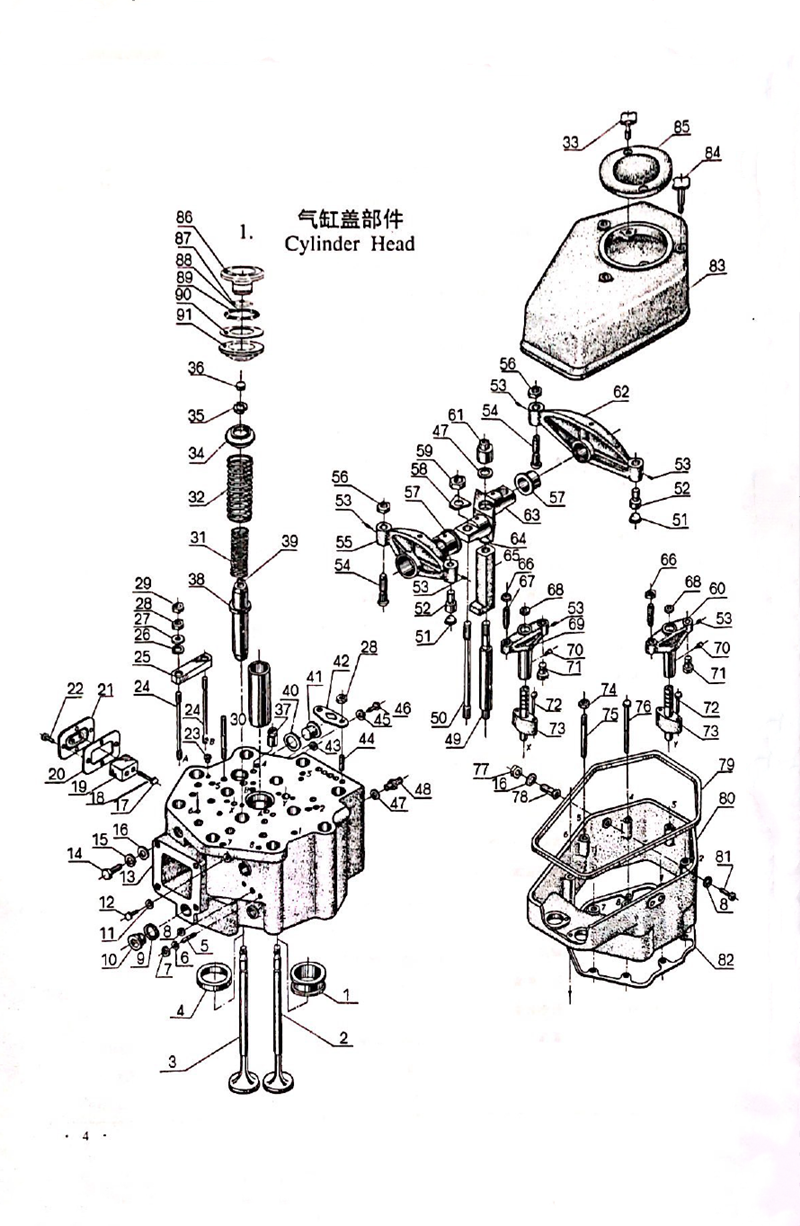

序号 Item	代号 Part Code	名称 Part Name	名称 Part Name	QTY
1	G-A01-B078D	排气阀座	Exhaust valve seat	2
2	G-A01-072	排气阀	Exhaust valve	2
3	G-01-042	进气阀	Intake valve	2
4	G-01-023B	进气阀座	Intake valve seat	2
5	GB898-88	双头螺柱M14×40	Stud M14×40	2
6	GB93-87	弹簧垫圈14	Spring lock washer14	2
7	GB6170-86	Ⅰ型六角螺母M14	Hexagon nut M14	2
8	Q/WC3403-94	铜垫圈12	Red copper washer 12	4
9	G-01-048	垫圈	Red copper washer	5
10	Q/WC3410-94	内六角螺塞M39×2	Hexagon socket threaded plug M39×2	5
11	Q/WC3403-94	铜垫圈10	Red copper washer 10	4
12	Q/XC3451.1-2002	铰接螺栓M10×1	Banjo bolt M10×1	2
13	G-A01-002B	气缸盖	Cylinder head	1
14	GB5783-86	六角头螺栓M16×40	Hexagon head bolt M16×40	8
15	GB93-87	弹簧垫圈16	Spring lock washer16	10
16	GB97.1-87	平垫圈16	Plain washer 16	9
17	G-01-001	螺栓	Bolt	4
18	G-01-056	保险铜丝	Lock wire (copper)	2
19	G-01-005A	防腐锌块	Anti-corrosion zinc plate	2
20	G-01-006	垫片	Gasket	2
21	G-01-003	盖板	Cover	2
22	GB5783-86	六角头螺栓M8×20	Hexagon head bolt M8×20	8
23	Q/WC3409-94	内六角螺塞R1/4	Hexagon socket threaded plug R1/4	2
24	G-A01-073A	喷油器螺柱	Stud for injector	2
25	G-A01-009A	喷油器压板	Injector pressboard	1
26	GB850-88	锥面垫圈16	Washer with cone face 16	2
27	GB849-88	球面垫圈16	Washer with ball face 16	2
28	GB6170-86	Ⅰ型六角螺母M16	Hexagon nut M16	4
29	GB6172-86	六角螺母M16	Hexagon nut M16	2
30	GB898-88	双头螺柱M16×100	Stud M16×100	2
31	G-01-047	气阀内弹簧	Valve inner spring	4
32	G-01-041A	气阀外弹簧	Valve outer spring	4
33	G-01-800	观察孔盖手柄组件	Check hole cover handle assy	2
34	G-01-039	弹簧盖	Cover for spring	4
35	G-01-038	卡块	Clamping cone	4
36	G-01-037A	阀帽	Valve top cap	4
37	G-01-014	启动阀短螺母	Short nut for starting valve	1
38	G-01-043	进气阀导管	Valve guide	4
39	GB895.2-86	轴用钢丝挡圈22	Round wire snap ring for shaft 22	4
40	G-01-052	铜垫圈	Red copper washer	5
41	G-01-051	内六角螺塞	Hexagon socket threaded plug	5
42	G-01-024B	出水管垫片	Water outlet pipe gasket	1
43	Q/WC3403-94	铜垫圈20	Red copper washer 20	2
44	GB898-88	双头螺柱M16×50	Stud M16×50	2
45	GB93-87	弹簧垫圈10	Spring lock washer 10	2
46	GB5783-86	六角头螺栓M10×30	Hexagon head bolt M10×30	2
47	Q/WC3403-94	铜垫圈24	Red copper washer 24	4
48	Q/WC3453.3-2002	旋接头16	Joint 16	1
49	G-A01-028	摇臂座中螺栓	Rocker supporter intermediate stud	1
50	G-01-027	进气摇臂座螺栓	Intake rocker supporter bolt	2
51	G-01-209	压球	Prss-ball	2
52	G-01-205	压球座	Prss-ball seat	2
53	GB73-85	开槽平端紧定螺钉M6×8	Slotted set screw with flat point M6×8	6
54	G-01-212	调节螺钉	Adjust screw	2
55	G-01-215	进气摇臂	Intake rocker	1
56	G-01-222	调节螺母	Adjust nut	2
57	G-01-214B	摇臂铜套	Rocker bush	2
58	G-01-216	止推块	Stopping block	2
59	GB6170-86	Ⅰ型六角螺母M24	Hexagon nut M24	2
60	G-A01-204A	排气顶架	Exhaust balance	1
61	G-A01-019	摇臂中螺栓螺母	Rocker intermediate nut	1
62	G-01-211	排气摇臂	Exhaust rocker	1
63	G-A01-217A	摇臂轴	Rocker shaft	1
64	GB1235-76	O形橡胶密封圈32×3.5	O-rubber seal ring 32×3.5	1
65	G-01-219	进气摇臂座	Intake rocker supporter	1
66	GB9457-88	六角开槽螺母M18×1.5	Hexagon slotted nut M18×1.5	2
67	G-01-207	顶架调节螺钉	Balance adjusting screw	2
68	G-01-208	硬块	Block	2
69	G-01-202	进气顶架	Intake balance	1
70	G-01-221A	定位螺栓	Locating bolt	2
71	G-01-218	顶架硬块	Balance block	2
72	GB5783-86	六角头螺栓M10×16	Hexagon head bolt M10×16	4
73	G-01-201B	进气导柱	Intake guide column	2
74	GB6170-86	Ⅰ型六角螺母M10	Hexagon nut M10	6
75	G-01-007B	罩座螺柱	Shell stud	6
76	GB5782-86	六角头螺栓M10×160	Hexagon head bolt M10×160	2
77	GB6173-86	六角薄螺母M16×1.5	Hexagon thin nut M10×1.5	1
78	G-01-025A	接头	Joint	1
79	G-01-031B	密封垫	Seal washer	1
80	G-01-015C	罩座	Shell seat	1
81	Q/XC3451.1-2002	铰接螺栓M12×1.25	Banjo bolt M12×1.25	1
82	G-01-016	垫片	Gasket	1
83	G-A01-032B	上罩座	Upper shell	1
84	G-01-700A	罩座手柄组件	Shell handle assy	3
85	G-01-033A	观察孔盖	Check hole cover	1
86	G-01-301	弹簧盘	Spring tray	2
87	GB895.2-86	挡圈38	Retaining ring 38	2
88	GB308-77	钢球	Iron ball	14
89	G-01-302	回位弹簧	Spring	14
90	G-01-303	蝶形弹簧	Belleville spring	2
91	G-01-304	盖盘	Shrouding disc	2
