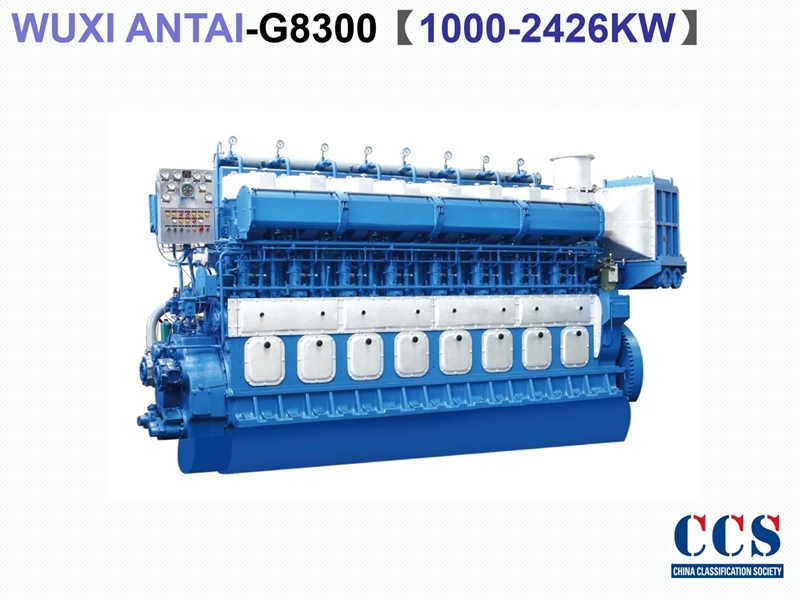

WUXI ANTAI Engine G8300

G8300ZCB 1000KW 400RPM

G8300ZC6B 1500KW 500RPM

G8300ZC16B 1765KW 525RPM

G8300ZC18B 2000KW 550RPM

G8300ZC16B 2426KW 630RPM

型号 Model	G8300ZCB G8300ZC1B	G8300ZC6B G8300ZC7B	G8300ZC16B G8300ZC17B	G8300ZC18B G8300ZC19B	G8300ZC20B G8300ZC21B	G8300ZC22B G8300ZC23B
型式 Type	直列、四冲程、直喷、涡轮增压、不可逆转 In-line,Four strokes, Turbocharger, Non-reversible
持续功率(kW) Rated power	1000	1500	1765	2000	2206	2426
持续功率(PS) Rated power(PS)	1360	2040	2400	2720	3000	3299
持续转速(rpm) Rated speed	400	500	525	550	600	630
气缸直径(mm) Cylinder bore	300
活塞行程(mm) Piston stroke	380
气缸数 No. of cylinders	8
总排量(L) Total displacement	215
压缩比 Compression ratio	13.5
最低工作稳定转速(RPM) Minimum stable speed	160	200	210	220	240	252
活塞平均速度(m/s) Mean piston speed	5.07	6.33	6.65	6.97	7.60	7.98
平均有效压力(Mpa) Mean effective pressure	1.40	1.68	1.88	2.03	2.05	2.15
最高爆发压力(Mpa) Maximum explosive pressure	≤15
各缸排气温度(℃) Each cylinder exhaust temperature	≤450
涡轮前排温(℃) Exhaust temperature before turbocharger	≤570
燃油消耗率(g/kw.h) Fuel oil consumption	204	204	205	205	205	206
机油消耗率(g/kw.h) Lubricating oil consumption	0.60
发火顺序 Fire order	(顺时针)(clockwise)
起动方式 Starting method	压缩空气启动 Started by compressed air
起动空气压力(Mpa) Starting aiir pressure	最大启动压力：2.94MPa，最小启动压力：1.1MPa Max starting pressure: 2.94MPa, Min starting pressure: 1.1MPa
外形尺寸(长×宽×高) Overall dimension，mm	5763×1670×2917
吊缸高度 Piston hang height,mm	2600
整机质量（kg） Net weight,kg	21000	21000	21300	21800	21800	23500

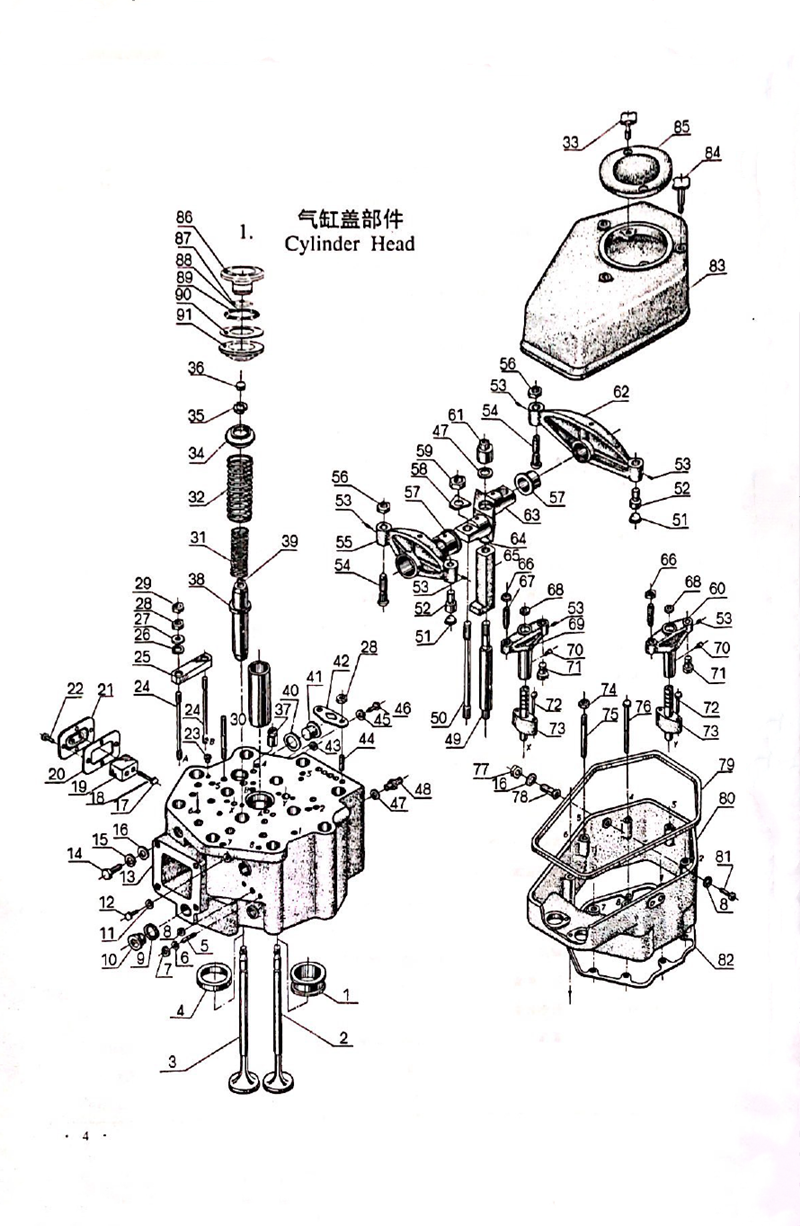

序号 Item	代号 Part Code	名称 Part Name	名称 Part Name	QTY
1	G-A01-B078D	排气阀座	Exhaust valve seat	2
2	G-A01-072	排气阀	Exhaust valve	2
3	G-01-042	进气阀	Intake valve	2
4	G-01-023B	进气阀座	Intake valve seat	2
5	GB898-88	双头螺柱M14×40	Stud M14×40	2
6	GB93-87	弹簧垫圈14	Spring lock washer14	2
7	GB6170-86	Ⅰ型六角螺母M14	Hexagon nut M14	2
8	Q/WC3403-94	铜垫圈12	Red copper washer 12	4
9	G-01-048	垫圈	Red copper washer	5
10	Q/WC3410-94	内六角螺塞M39×2	Hexagon socket threaded plug M39×2	5
11	Q/WC3403-94	铜垫圈10	Red copper washer 10	4
12	Q/XC3451.1-2002	铰接螺栓M10×1	Banjo bolt M10×1	2
13	G-A01-002B	气缸盖	Cylinder head	1
14	GB5783-86	六角头螺栓M16×40	Hexagon head bolt M16×40	8
15	GB93-87	弹簧垫圈16	Spring lock washer16	10
16	GB97.1-87	平垫圈16	Plain washer 16	9
17	G-01-001	螺栓	Bolt	4
18	G-01-056	保险铜丝	Lock wire (copper)	2
19	G-01-005A	防腐锌块	Anti-corrosion zinc plate	2
20	G-01-006	垫片	Gasket	2
21	G-01-003	盖板	Cover	2
22	GB5783-86	六角头螺栓M8×20	Hexagon head bolt M8×20	8
23	Q/WC3409-94	内六角螺塞R1/4	Hexagon socket threaded plug R1/4	2
24	G-A01-073A	喷油器螺柱	Stud for injector	2
25	G-A01-009A	喷油器压板	Injector pressboard	1
26	GB850-88	锥面垫圈16	Washer with cone face 16	2
27	GB849-88	球面垫圈16	Washer with ball face 16	2
28	GB6170-86	Ⅰ型六角螺母M16	Hexagon nut M16	4
29	GB6172-86	六角螺母M16	Hexagon nut M16	2
30	GB898-88	双头螺柱M16×100	Stud M16×100	2
31	G-01-047	气阀内弹簧	Valve inner spring	4
32	G-01-041A	气阀外弹簧	Valve outer spring	4
33	G-01-800	观察孔盖手柄组件	Check hole cover handle assy	2
34	G-01-039	弹簧盖	Cover for spring	4
35	G-01-038	卡块	Clamping cone	4
36	G-01-037A	阀帽	Valve top cap	4
37	G-01-014	启动阀短螺母	Short nut for starting valve	1
38	G-01-043	进气阀导管	Valve guide	4
39	GB895.2-86	轴用钢丝挡圈22	Round wire snap ring for shaft 22	4
40	G-01-052	铜垫圈	Red copper washer	5
41	G-01-051	内六角螺塞	Hexagon socket threaded plug	5
42	G-01-024B	出水管垫片	Water outlet pipe gasket	1
43	Q/WC3403-94	铜垫圈20	Red copper washer 20	2
44	GB898-88	双头螺柱M16×50	Stud M16×50	2
45	GB93-87	弹簧垫圈10	Spring lock washer 10	2
46	GB5783-86	六角头螺栓M10×30	Hexagon head bolt M10×30	2
47	Q/WC3403-94	铜垫圈24	Red copper washer 24	4
48	Q/WC3453.3-2002	旋接头16	Joint 16	1
49	G-A01-028	摇臂座中螺栓	Rocker supporter intermediate stud	1
50	G-01-027	进气摇臂座螺栓	Intake rocker supporter bolt	2
51	G-01-209	压球	Prss-ball	2
52	G-01-205	压球座	Prss-ball seat	2
53	GB73-85	开槽平端紧定螺钉M6×8	Slotted set screw with flat point M6×8	6
54	G-01-212	调节螺钉	Adjust screw	2
55	G-01-215	进气摇臂	Intake rocker	1
56	G-01-222	调节螺母	Adjust nut	2
57	G-01-214B	摇臂铜套	Rocker bush	2
58	G-01-216	止推块	Stopping block	2
59	GB6170-86	Ⅰ型六角螺母M24	Hexagon nut M24	2
60	G-A01-204A	排气顶架	Exhaust balance	1
61	G-A01-019	摇臂中螺栓螺母	Rocker intermediate nut	1
62	G-01-211	排气摇臂	Exhaust rocker	1
63	G-A01-217A	摇臂轴	Rocker shaft	1
64	GB1235-76	O形橡胶密封圈32×3.5	O-rubber seal ring 32×3.5	1
65	G-01-219	进气摇臂座	Intake rocker supporter	1
66	GB9457-88	六角开槽螺母M18×1.5	Hexagon slotted nut M18×1.5	2
67	G-01-207	顶架调节螺钉	Balance adjusting screw	2
68	G-01-208	硬块	Block	2
69	G-01-202	进气顶架	Intake balance	1
70	G-01-221A	定位螺栓	Locating bolt	2
71	G-01-218	顶架硬块	Balance block	2
72	GB5783-86	六角头螺栓M10×16	Hexagon head bolt M10×16	4
73	G-01-201B	进气导柱	Intake guide column	2
74	GB6170-86	Ⅰ型六角螺母M10	Hexagon nut M10	6
75	G-01-007B	罩座螺柱	Shell stud	6
76	GB5782-86	六角头螺栓M10×160	Hexagon head bolt M10×160	2
77	GB6173-86	六角薄螺母M16×1.5	Hexagon thin nut M10×1.5	1
78	G-01-025A	接头	Joint	1
79	G-01-031B	密封垫	Seal washer	1
80	G-01-015C	罩座	Shell seat	1
81	Q/XC3451.1-2002	铰接螺栓M12×1.25	Banjo bolt M12×1.25	1
82	G-01-016	垫片	Gasket	1
83	G-A01-032B	上罩座	Upper shell	1
84	G-01-700A	罩座手柄组件	Shell handle assy	3
85	G-01-033A	观察孔盖	Check hole cover	1
86	G-01-301	弹簧盘	Spring tray	2
87	GB895.2-86	挡圈38	Retaining ring 38	2
88	GB308-77	钢球	Iron ball	14
89	G-01-302	回位弹簧	Spring	14
90	G-01-303	蝶形弹簧	Belleville spring	2
91	G-01-304	盖盘	Shrouding disc	2
