6230ZC-1 660KW 750RPM
6230ZC 810KW 750RPM
6230ZC-4 960KW 900RPM
| 型号 Model | 6230ZC-1 | 6230ZC | 6230ZC-4 |
| 型式 Type | 直列、四冲程、直喷、涡轮增压、不可逆转 In-line,Four strokes, Turbocharger, Non-reversible | ||
| 持续功率(kW/PS) Rated power | 660/898 | 810/1100 | 960/1300 |
| 持续转速(rpm) Rated speed | 750 | 750 | 900 |
| 气缸直径(mm) Cylinder bore | 230 | ||
| 活塞行程(mm) Piston stroke | 300 | ||
| 气缸数 No. of cylinders | 6 | ||
| 总排量(L) Total displacement | 74.75 | ||
| 最低工作稳定转速(RPM) Minimum stable speed | 300 | 300 | 360 |
| 活塞平均速度(m/s) Mean piston speed | 7.5 | 7.5 | 9.0 |
| 平均有效压力(Mpa) Mean effective pressure | 1.41 | 1.73 | 1.712 |
| 燃油消耗率(g/kw.h) Fuel oil consumption | 190(85% MCR); 192(100% MCR) | ||
| 机油消耗率(g/kw.h) Lubricating oil consumption | 1.0 | ||
| 起动方式 Starting method | 压缩空气启动 Started by compressed air | ||
| 供油正时 Fuel injection timing | 上死点前9-13°， 9-13 ° before top dead center | ||
| 起动空气压力(Mpa) Starting aiir pressure | 最大启动压力：2.94MPa，最小启动压力：1.1MPa Max starting pressure: 2.94MPa, Min starting pressure: 1.1MPa | ||

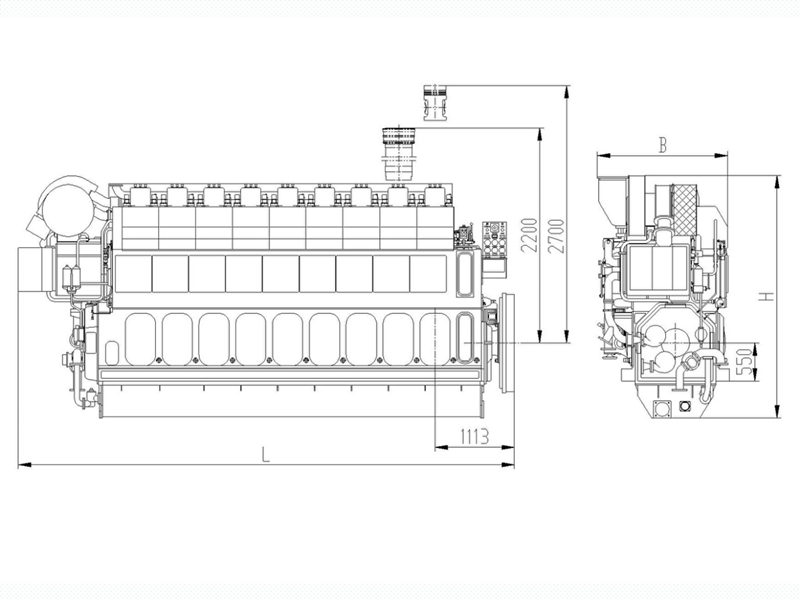

| 外形尺寸(长×宽×高) Overall dimension | 3852(4064)×1354×2492 | ||
| 双主机安装最小中心距离 Minimum center distance for dual engine | 1800 | ||
| 整机质量（kg） Net weight | 11500 | ||
