GUANGCHAI GDF 6320

6320ZCd 970KW 400RPM

6320ZCd-2 1103KW 428RPM

6320ZCd-4 1324KW 500RPM

6320ZCd-6E 1470KW 525RPM

6320ZCd-6 1545KW 525RPM

6320ZCd-10 1765KW 550RPM

型号 Model	6320ZCd	6320ZCd-2	6320ZCd-4	6320ZCd-6E	6320ZCd-6	6320ZCd-10
型式 Type	直列、四冲程、直喷、涡轮增压、不可逆转 In-line,Four strokes, Turbocharger, Non-reversible
持续功率(kW/PS) Rated power	970/1320	1103/1500	1324/1800	1470/2000	1545/2100	1765/2400
持续转速(rpm) Rated speed	400	428	500	525	525	550
气缸直径(mm) Cylinder bore	320
活塞行程(mm) Piston stroke	440
气缸数 No. of cylinders	6
总排量(L) Total displacement	212.21
最低工作稳定转速(RPM) Minimum stable speed	160	172	200	210	210	220
活塞平均速度(m/s) Mean piston speed	5.87	6.28	7.3	7.7	7.7	8.07
平均有效压力(Mpa) Mean effective pressure	1.372	1.457	1.495	1.583	1.662	1.81
最高爆发压力(Mpa) Maximum explosive pressure	≤9.5	≤10.3	≤12.5	≤12.5	≤12.5	≤14
燃油消耗率(g/kw.h) Fuel oil consumption	196(85% MCR); 198(100% MCR)		192(85% MCR); 194(100% MCR)
机油消耗率(g/kw.h) Lubricating oil consumption	1.2
起动方式 Starting method	压缩空气启动 Started by compressed air
供油正时 Fuel injection timing	上死点前9-13°， 9-13 ° before top dead center
起动空气压力(Mpa) Starting aiir pressure	最大启动压力：2.94MPa，最小启动压力：1.1MPa Max starting pressure: 2.94MPa, Min starting pressure: 1.1MPa

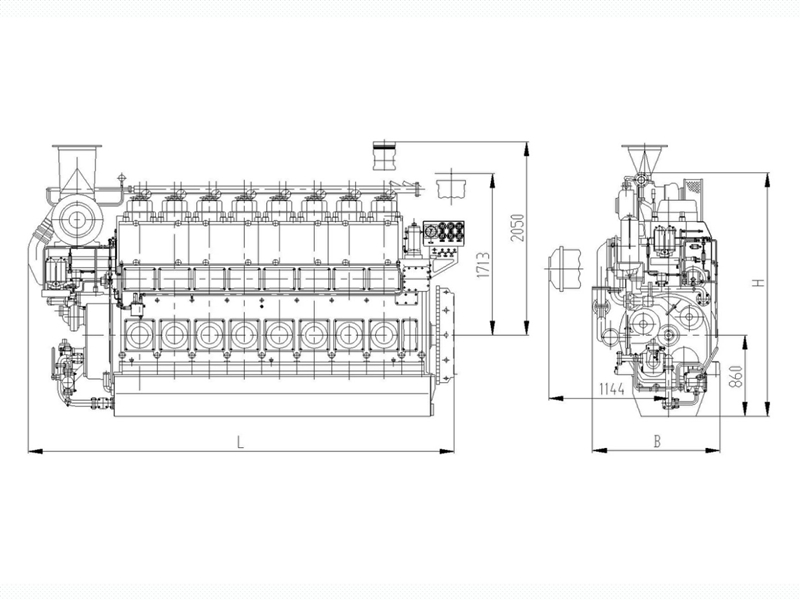

外形尺寸(长×宽×高) Overall dimension	4859×1613×3055
双主机安装最小中心距离 Minimum center distance for dual engine	2800
整机质量（kg） Net weight	23000
