9G32 4400KW 600RPM
9G32Y 3980KW 570RPM
9G32EY 3600KW 515RPM
| 型号 Model | 9G32 | 9G32Y | 9G32EY |
| 型式 Type | 直列、四冲程、直喷、涡轮增压、不可逆转 In-line,Four strokes, Turbocharger, Non-reversible | ||
| 持续功率(kW/PS) Rated power | 4400/6000 | 3980/5430 | 3600/4910 |
| 持续转速(rpm) Rated speed | 600 | 570 | 515 |
| 气缸直径(mm) Cylinder bore | 320 | ||
| 活塞行程(mm) Piston stroke | 480 | ||
| 气缸数 No. of cylinders | 9 | ||
| 总排量(L) Total displacement | 347.26 | ||
| 最低工作稳定转速(RPM) Minimum stable speed | 240 | 228 | 206 |
| 活塞平均速度(m/s) Mean piston speed | 9.6 | 9.12 | 8.24 |
| 平均有效压力(Mpa) Mean effective pressure | 2.53 | 2.41 | 2.42 |
| 燃油消耗率(g/kw.h) Fuel oil consumption | 179(85% MCR); 181(100% MCR) | ||
| 机油消耗率(g/kw.h) Lubricating oil consumption | 0.8 | ||
| 起动方式 Starting method | 压缩空气启动 Started by compressed air | ||
| 供油正时 Fuel injection timing | 上死点前9-13°， 9-13 ° before top dead center | ||
| 起动空气压力(Mpa) Starting aiir pressure | 最大启动压力：2.94MPa，最小启动压力：1.1MPa Max starting pressure: 2.94MPa, Min starting pressure: 1.1MPa | ||

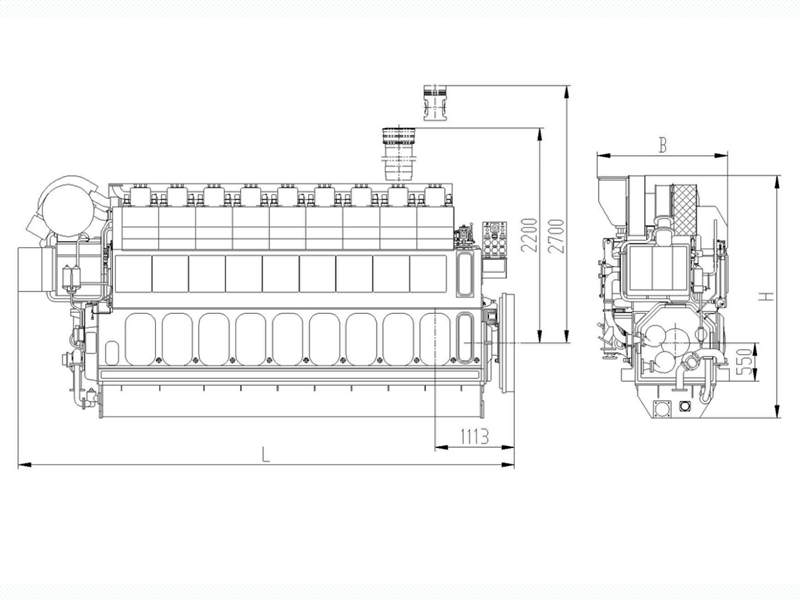

| 外形尺寸(长×宽×高) Overall dimension | 7257×1910×3745 | ||
| 双主机安装最小中心距离 Minimum center distance for dual engine | 2750 | ||
| 整机质量（kg） Net weight | 54000 | ||
