GUANGCHAI GDF 6G32

6G32 2665KW 600RPM

6G32A 2930KW 600RPM

型号 Model	6G32	6G32A
型式 Type	直列、四冲程、直喷、涡轮增压、不可逆转 In-line,Four strokes, Turbocharger, Non-reversible
持续功率(kW/PS) Rated power	2665/3600	2930/4000
持续转速(rpm) Rated speed	600	600
气缸直径(mm) Cylinder bore	320
活塞行程(mm) Piston stroke	480
气缸数 No. of cylinders	6
总排量(L) Total displacement	231.51
最低工作稳定转速(RPM) Minimum stable speed	240	240
活塞平均速度(m/s) Mean piston speed	9.6	9.6
平均有效压力(Mpa) Mean effective pressure	2.3	2.53
燃油消耗率(g/kw.h) Fuel oil consumption	179(85% MCR); 181(100% MCR)
机油消耗率(g/kw.h) Lubricating oil consumption	0.8
起动方式 Starting method	压缩空气启动 Started by compressed air
供油正时 Fuel injection timing	上死点前9-13°， 9-13 ° before top dead center
起动空气压力(Mpa) Starting aiir pressure	最大启动压力：2.94MPa，最小启动压力：1.1MPa Max starting pressure: 2.94MPa, Min starting pressure: 1.1MPa

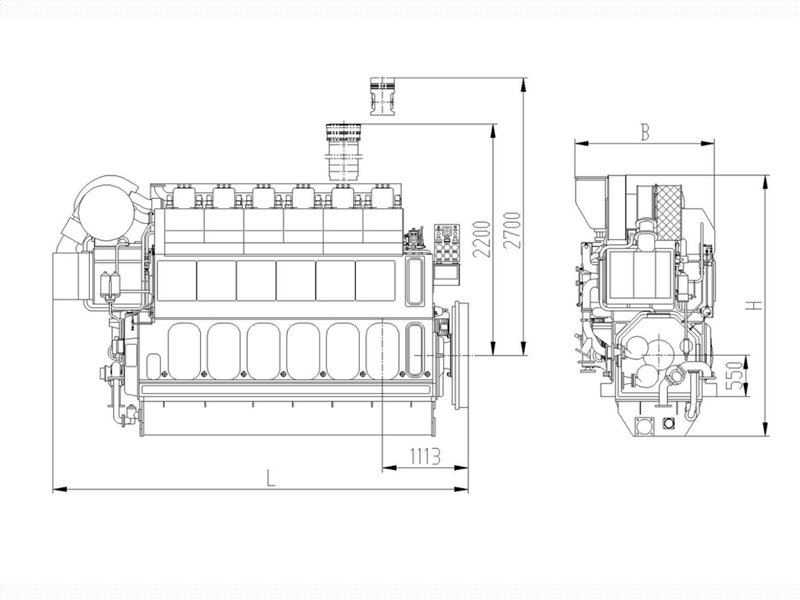

外形尺寸(长×宽×高) Overall dimension	5580×1924×3490
双主机安装最小中心距离 Minimum center distance for dual engine	2630
整机质量（kg） Net weight	36500
