6CS21/32R 1320KW 1000RPM
6CS21/32 1320KW 1000RPM
6CS21/32-2 1100KW 1000RPM
| 型号 Model | 6CS21/32R | 6CS21/32 | 6CS21/32-2 |
| 喷油系统 Fuel injection system | 高压共轨电控喷射 Common rail injection | 机械式高压泵喷射 Injection pump injector | 机械式高压泵喷射 Injection pump injector |
| 型式 Type | 直列、四冲程、直喷、涡轮增压、不可逆转 In-line,Four strokes, Turbocharger, Non-reversible | ||
| 持续功率(kW/PS) Rated power | 1320/1800 | 1320/1800 | 1100/1500 |
| 持续转速(rpm) Rated speed | 1000 | 1000 | 1000 |
| 气缸直径(mm) Cylinder bore | 210 | ||
| 活塞行程(mm) Piston stroke | 320 | ||
| 气缸数 No. of cylinders | 6 | ||
| 总排量(L) Total displacement | 88.62 | ||
| 最低工作稳定转速(RPM) Minimum stable speed | 400 | 400 | 400 |
| 活塞平均速度(m/s) Mean piston speed | 10.67 | 10.67 | 10.67 |
| 平均有效压力(Mpa) Mean effective pressure | 1.79 | 1.79 | 1.49 |
| 燃油消耗率(g/kw.h) Fuel oil consumption | 185+5% | ||
| 机油消耗率(g/kw.h) Lubricating oil consumption | 0.6±0.3 | ||
| 起动方式 Starting method | 气动马达启动 Air motor | ||

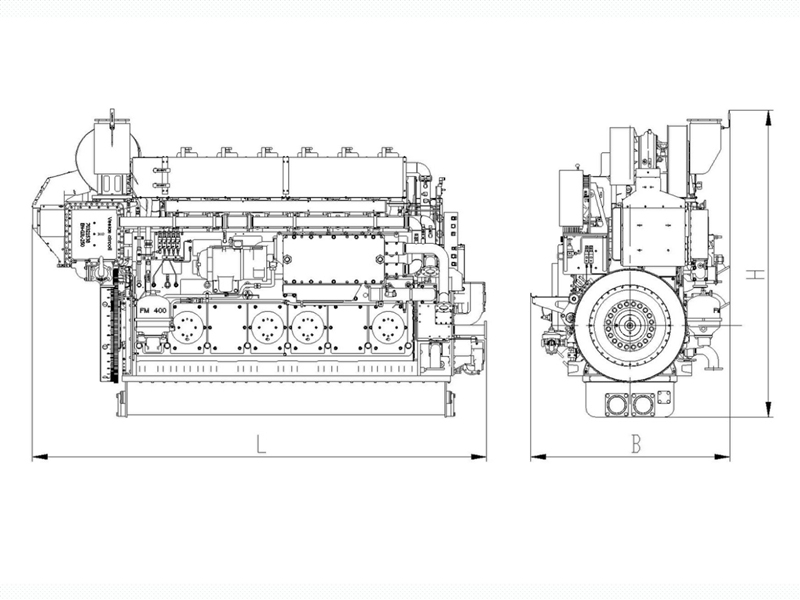

| 外形尺寸(长×宽×高) Overall dimension | 3818×1771×3008 | ||
| 双主机安装最小中心距离 Minimum center distance for dual engine | 2750 | ||
| 整机质量（kg） Net weight | 17500 | 17800 | 17800 |
