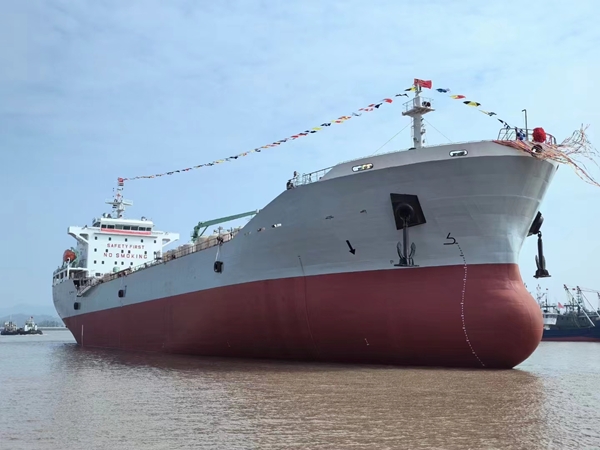

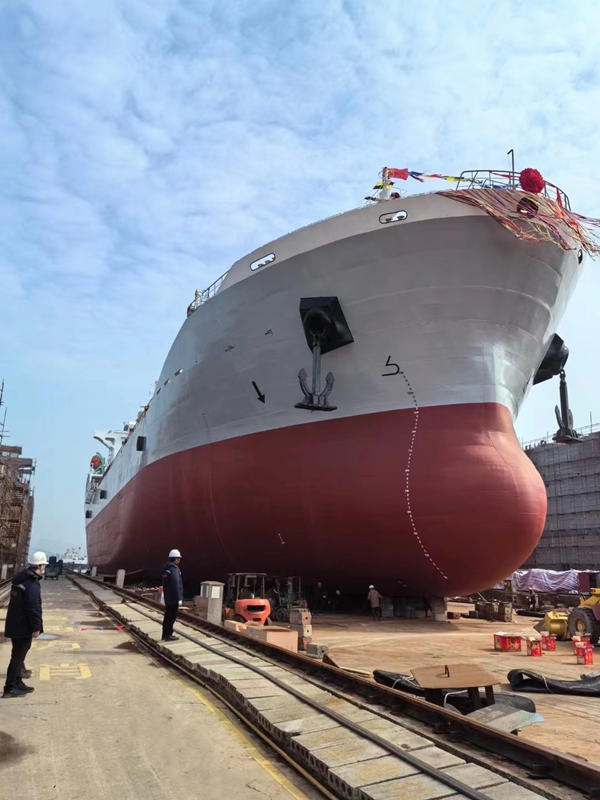

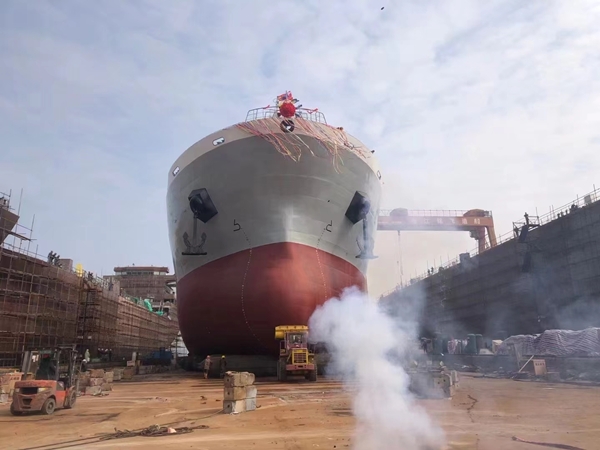

Oil tanker 22400DWT

Ship type	Oil Tanker, Double Hull	下次特检日期	2029/6/11
Gross tonnage	16,224	净吨位
Load capacity ton	22405.29	Length overall,m	154.37
Length between vertical lines,m	148	Mould width,m	26
Mould Depth，m	14.1	Freeboard	4894
Average draft depth,m	9.22	Ship's speed	14.4
Ship classification symbol	★CSA	Additional hull markings	Emergency Towing Arrangements;F.P. ≤ 60℃;Ice Class B;In-Water Survey;Loading Computer (S, I, D);R1(D)
Marine engine classification symbol	★CSM	Marine engine additional markings	BRC;Gd-EP(VCS);IGS;MCC;SCM
Superstructure and Deck Room	Deckhouse:21.60,Forecastle:14.38,Poop:29.90	Number of Deck Layers	1,Upper Deck
Number of bulkheads	9,Fr.Nos.10,33,39,52,59,66,73,80,86	Ballast	9866
Shipyard	Zhejiang	Ship construction location	China
Ship construction time	2024/6/12	重大改建部位的建造日期
重大改建情况		Main engine factory	Yichang Marine Diesel Engine Co.,Ltd
锅炉建造厂	Zhangjiagang Hailu Shazhou Technology Co., Ltd.	Main engine manufacturing time	2022/8/18
锅炉建造时间		Main engine type * quantity	6S40ME-B9.5*1;
Number of main engine cylinders * cylinder diameter * power * speed	64006810*146	Generator * Power * Voltage * quantity	HFC6 508-84K700.004003; MP-H-200-4200.004001;
锅炉数压力受热面积 Number of boilers * Pressure * Heating surface area	10.720.00/280.00 m2	集装箱数*规格	dk:;ho:
Number of cargo holds	10	货舱总容积 Total cargo hold capacity	27336.60 M3
舱口数及舱口尺度 Number of hatches and hatch dimensions	10*Dia.0.8	起货设备类型,安全负荷,数量
各货舱容积 Capacity of each cargo hold	NO.1C.O.T.(P)(G2307.80) ;NO.1C.O.T.(S)(G2328.90) ;NO.2C.O.T.(P)(G2823.40) ;NO.2C.O.T.(S)(G2843.60) ;NO.3C.O.T.(P)(G2843.80) ;NO.3C.O.T.(S)(G2859.20) ;NO.4C.O.T.(P)(G2835.00) ;NO.4C.O.T.(S)(G2856.10) ;NO.5C.O.T.(P)(G2810.80) ;NO.5C.O.T.(S)(G2828.00)
