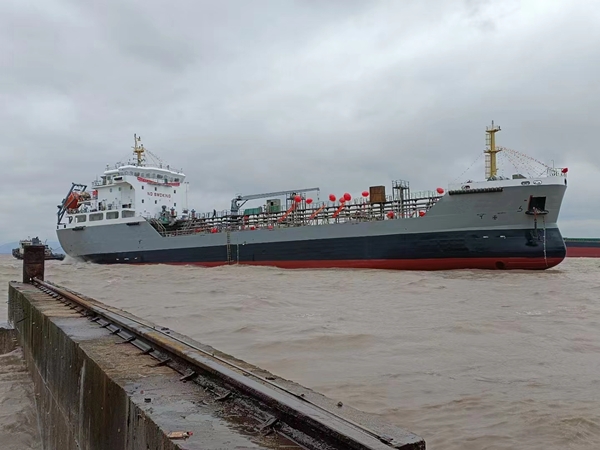

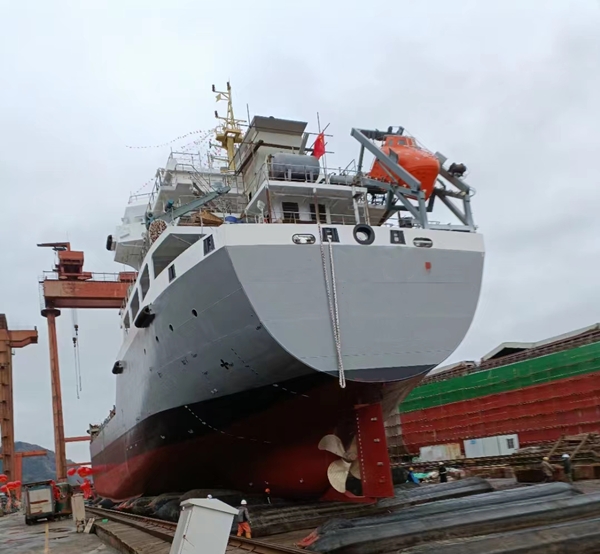

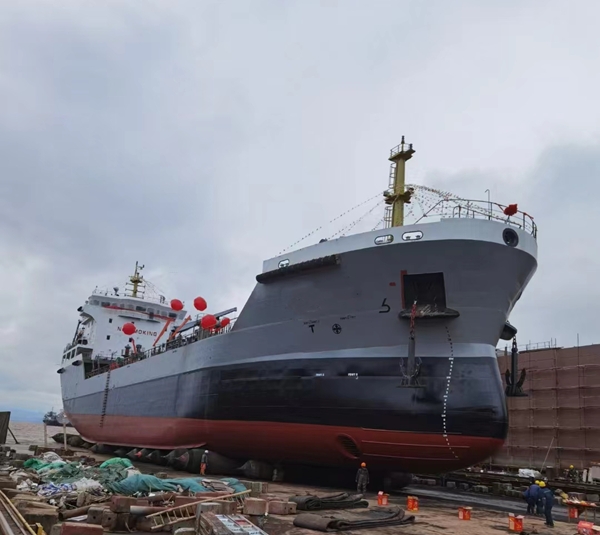

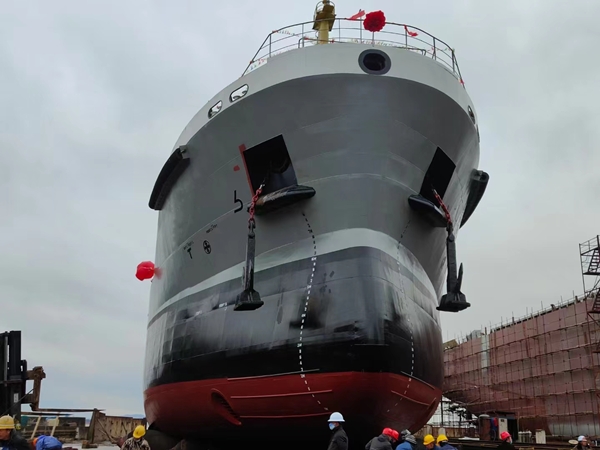

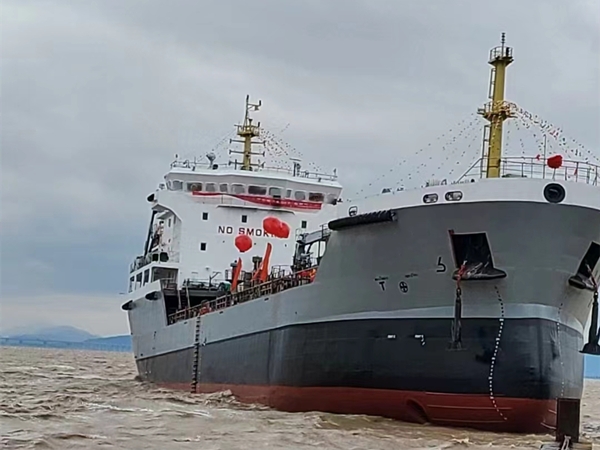

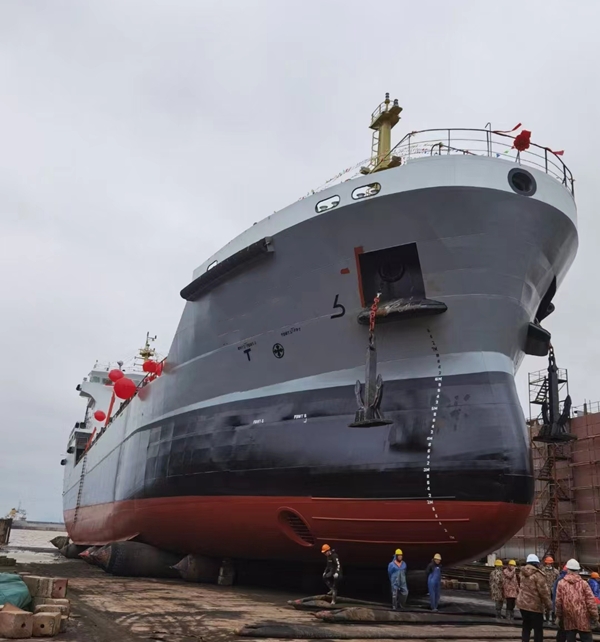

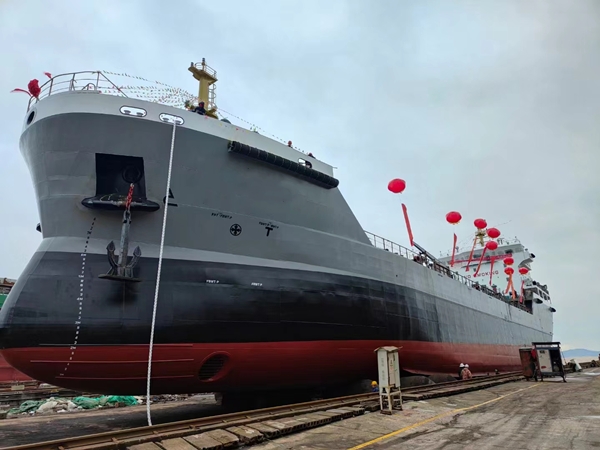

Asphalt tanker 5700DWT

Ship type	Asphalt Carrier (Integral Tank，Max. Cargo Temperature ≤ 160 ℃)/Oil Tanker, Double Hull	下次特检日期	2027/6/16
Gross tonnage	4,345	净吨位
Load capacity ton	5,675	Length overall,m	99.9
Length between vertical lines,m	96.08	Mould width,m	17.2
Mould Depth，m	8.2	Freeboard	1982
Average draft depth,m	6.23	Ship's speed	13
Ship classification symbol	★CSA	Additional hull markings	F.P. ≤ 60℃;Ice Class B;R1(D)
Marine engine classification symbol	★CSM	Marine engine additional markings	BRC;Gd-EP(VCS)
Superstructure and Deck Room	Deckhouse:16.60,Forecastle:9.75,Poop:23.5	Number of Deck Layers	1,Upper Deck
Number of bulkheads	8，Fr.Nos.8,30,35,57,78,100,126,130	Ballast	2593
Shipyard	Zhejiang	Ship construction location	China
Ship construction time	2022/6/17	重大改建部位的建造日期
重大改建情况		Main engine factory	GUANGZHOU DIESEL ENGINE FACTORY CO.,LTD
锅炉建造厂	Jiangyin Sanjie Boiler Co.,Ltd.	Main engine manufacturing time	2021/7/15
锅炉建造时间		Main engine type * quantity	8320ZCd-10*1;
Number of main engine cylinders * cylinder diameter * power * speed	83202427*550	Generator * Power * Voltage * quantity	SB-HW4.D-100100.004001; SB-HW4.D-2502504002;
锅炉数压力受热面积 Number of boilers * Pressure * Heating surface area	10.5/36 m2;20.7/190 m2	集装箱数*规格	dk:;ho:
Number of cargo holds	8	货舱总容积 Total cargo hold capacity	5896.86 M3
舱口数及舱口尺度 Number of hatches and hatch dimensions	8*Dia.1.0	起货设备类型,安全负荷,数量
各货舱容积 Capacity of each cargo hold	NO.1 C.O.T.( P)(G676.24) ;NO.1 C.O.T.( S)(G676.24) ;NO.2C. O.T.(P)(G775.39) ;NO.2C. O.T.(S)(G775.39) ;NO.3C. O.T.(P)(G739.49) ;NO.3C. O.T.(S)(G739.49) ;NO.4C. O.T.(P)(G757.31) ;NO.4C. O.T.(S)(G757.31)
