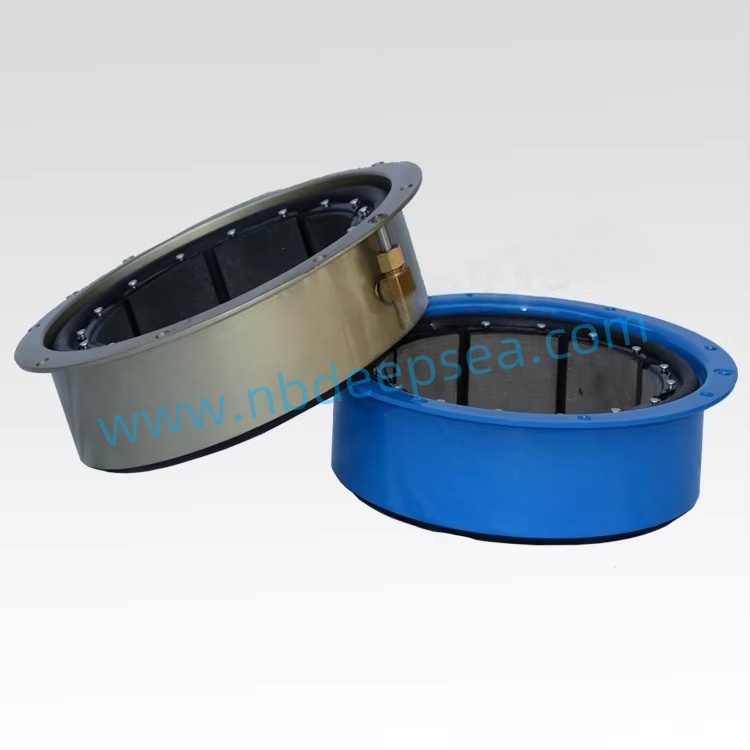

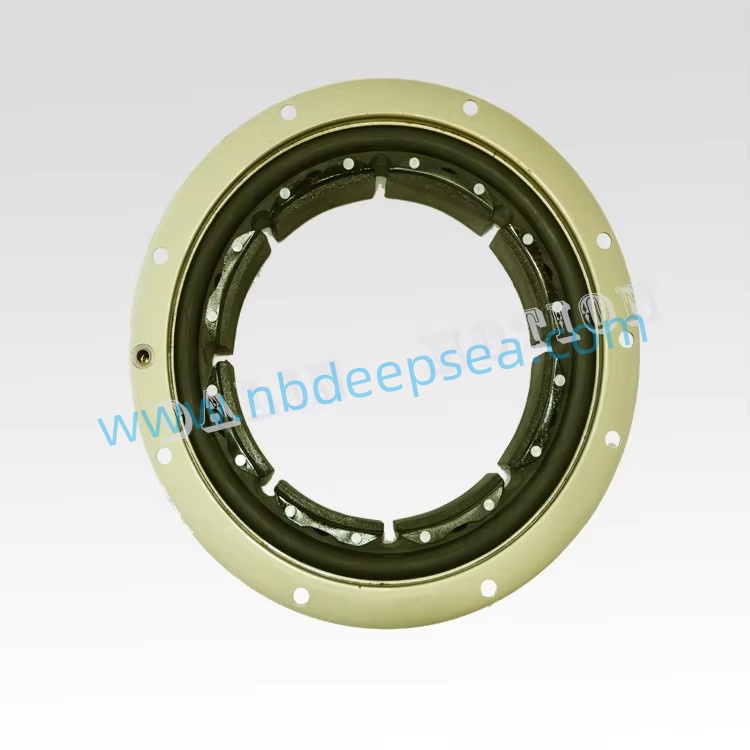

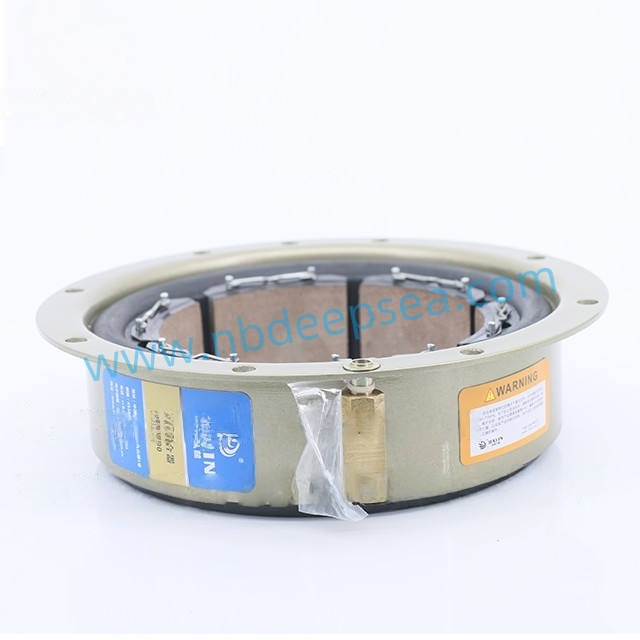

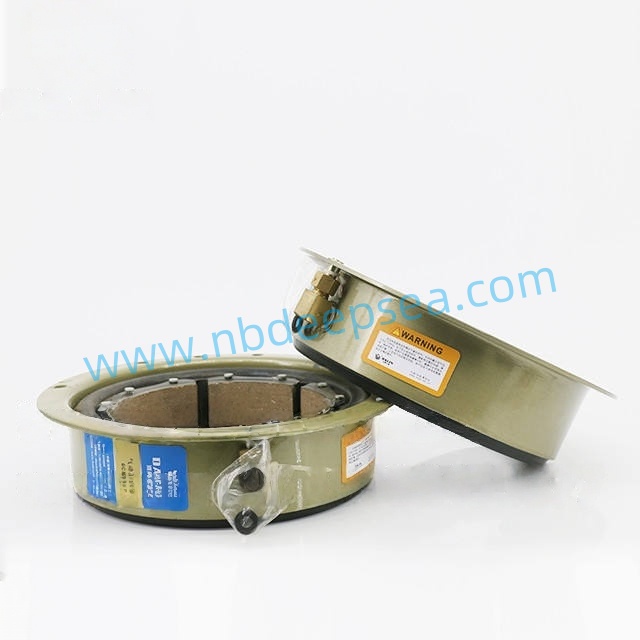

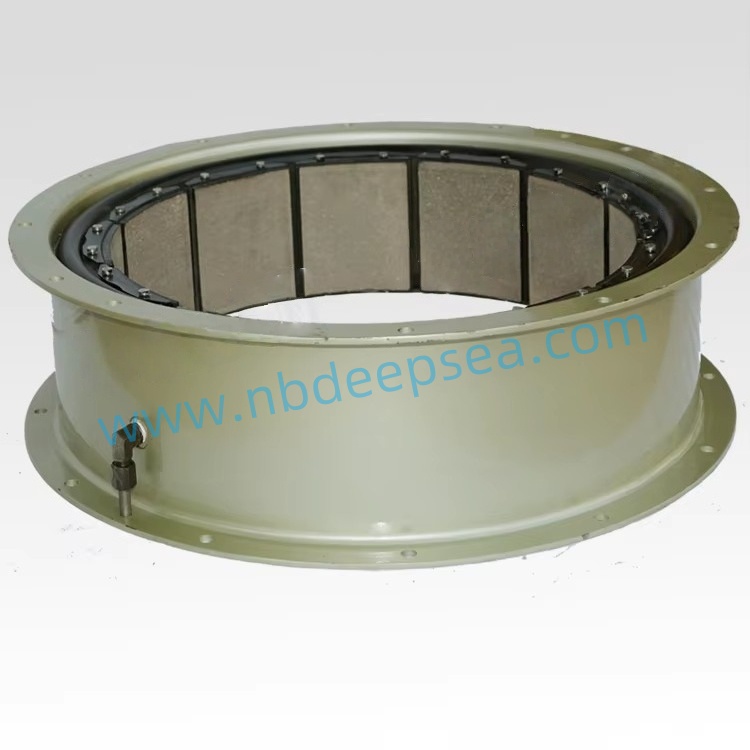

Rubflex Clutch 10CB300

Model	Speed	Rated torque	Pressure,Mpa	Friction wheel diameter Φ1mm	Friction wheel width,Bmm	connection size,mm				Inlet pipe thread,m	Number of friction plates
Model	r/min	N·m	Pressure,Mpa	Friction wheel diameter Φ1mm	Friction wheel width,Bmm	Rim diameter Φ2	Rim width,H	Number and diameter of bolt,n-Φ3	diameter of bolt Φ4	Inlet pipe thread,m	Number of friction plates
4CB200	1800	113	0.7±0.1	99	51	184.1	66	8-Φ6	170	NPT1/8-27	-
6CB200	1800	231	0.7±0.1	150	51	230	72.5	8-Φ10	254	NPT3/8-18	6
8CB250	1800	485	0.7±0.1	201	64	284	85	8-Φ10	308	NPT3/8-18	8
10CB300	1800	921	0.7±0.1	251	76	346	105	12-Φ10	371.5	NPT3/8-18	10
12CB350	1800	1500	0.7±0.1	302	89	403	112	14-Φ10	428.6	NPT3/8-18	12
14CB400	1800	2230	0.7±0.1	353	102	454	121	16-Φ10	479.4	NPT3/8-18	14
14CB400 (Double flange)	1800	2230	0.7±0.1	353	102	498.5	137	16-Φ10	479.4	NPT3/8-18	14
16CB500	1550	3980	0.7±0.1	403	127	596.9	168	8-Φ13	571.5	NPT3/8-18	10
18CB500	1400	4970	0.7±0.1	454	127	647.7	168	12-Φ13	619.1	NPT3/8-18	11
20CB500	1300	6060	0.7±0.1	505	127	698.5	168	12-Φ13	669.9	NPT3/8-18	12
20CB500 (double row)	1300	1210	0.7±0.1	505	127	698.5	346	12-Φ13	669.9	NPT3/8-18	12
22CB500	1250	7040	0.7±0.1	555	127	749.3	168	12-Φ13	720.7	NPT3/8-18	13
24CB500	1200	8480	0.7±0.1	606	127	800.1	168	16-Φ13	771.5	NPT3/8-18	14
24CB500 (double row)	1200	17000	0.7±0.1	606	127	800.1	346	16-Φ13	771.5	NPT3/8-18	14
28CB525	1000	12000	0.7±0.1	706	133	914.4	176	16-Φ16	882.7	NPT3/8-18	17
32CB525	900	15500	0.7±0.1	808	133	1016	176	18-Φ16	984.3	NPT1/2-14	19
45CB525	700	29400	0.7±0.1	1137	133	1362.1	176	24-Φ19	1324	NPT3/4-14	27
