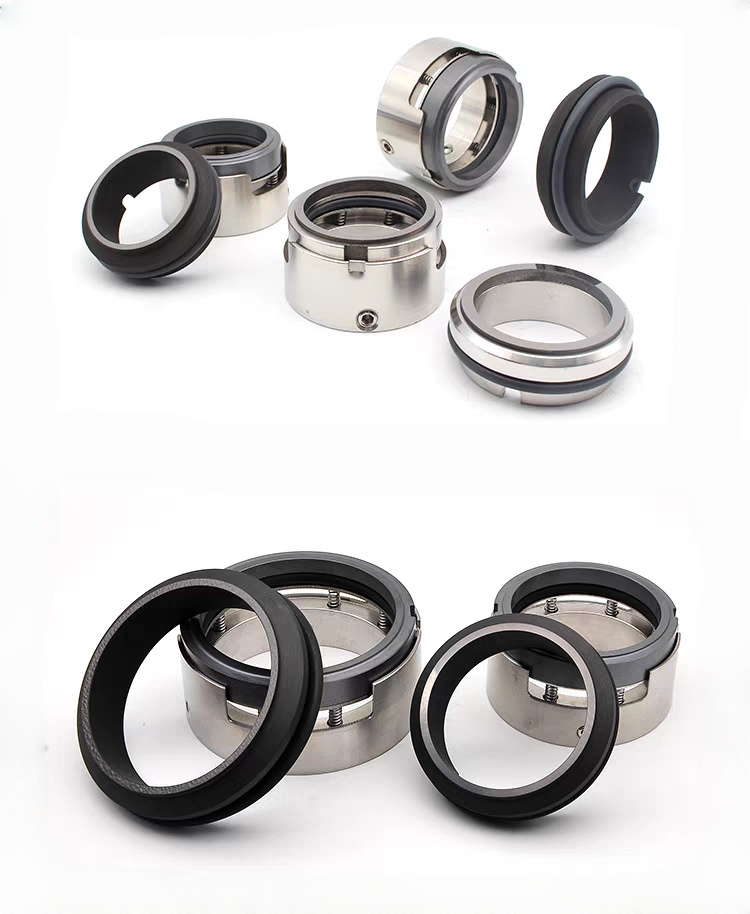

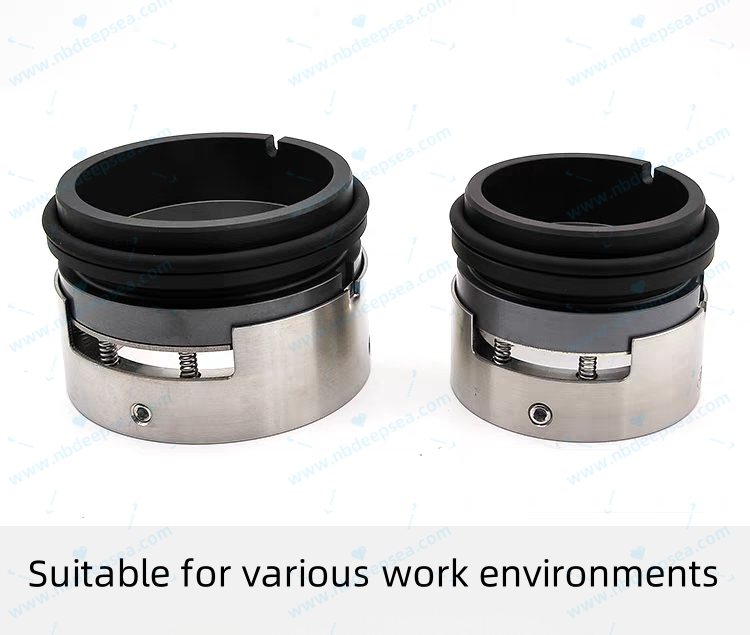

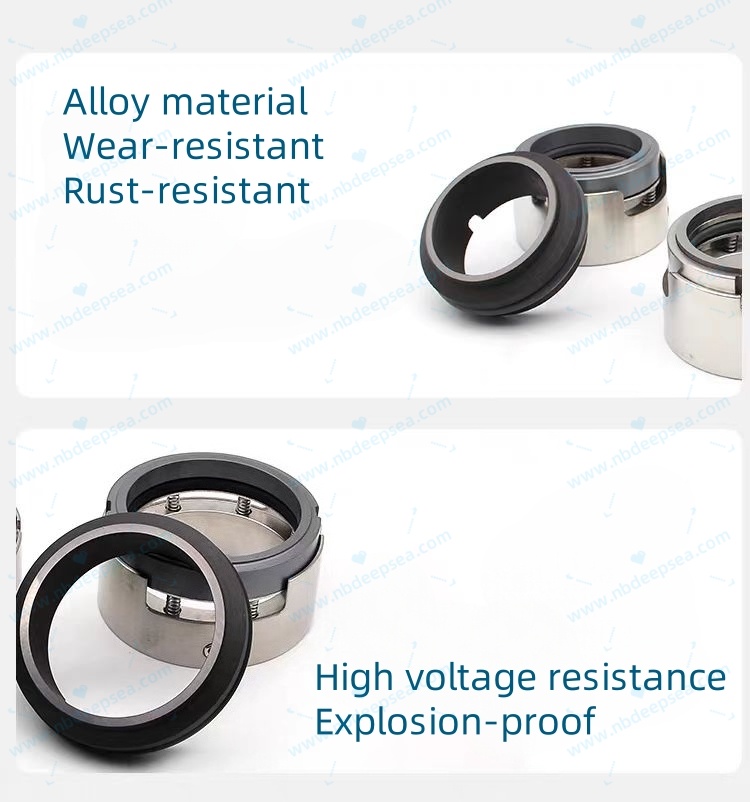

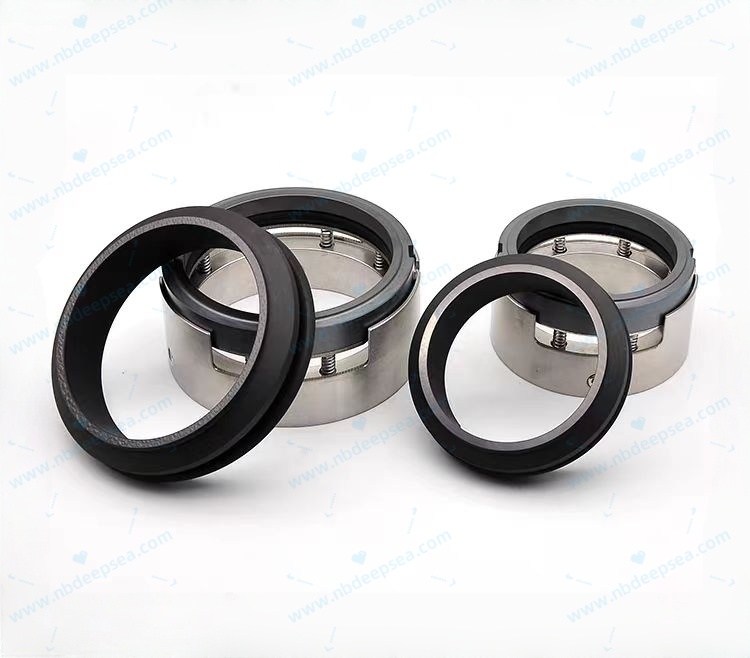

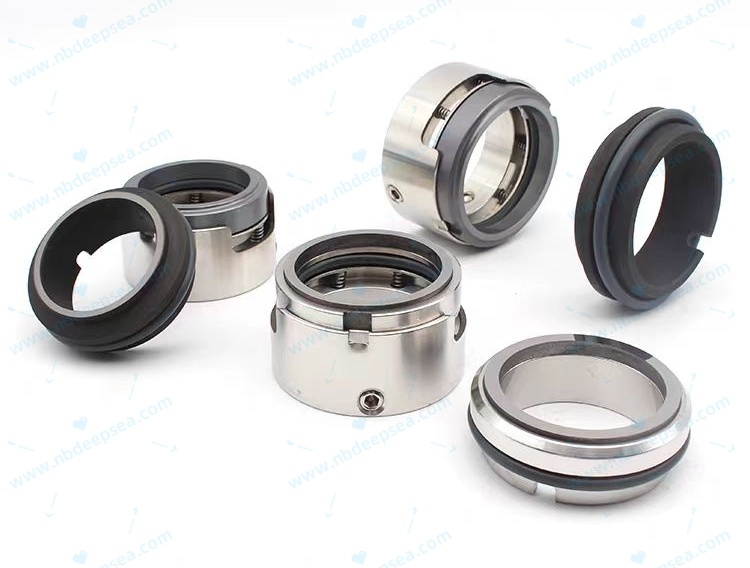

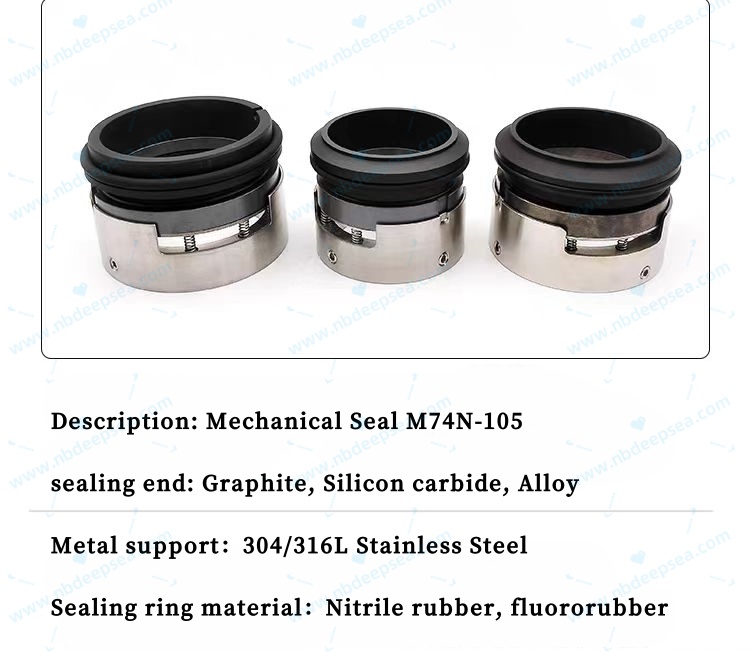

Mechanical Seal M74 / M74N

Model	Inner diameter of rotating ring,d1,mm	Outer diameter of rotating ring, d3,mm	Outer diameter of stationary ring,d7,mm	Rotating ring height,I3,mm	stationary ring height,I8,mm
M7N/M74N-20	20	35	35	26	19.5
M7N/M74N-22	22	37	37	26	19.5
M7N/M74N-24	24	39	39	28.5	19.5
M7N/M74N-25	25	40	40	28.5	19.5
M7N/M74N-28	28	43	43	31	19.5
M7N/M74N-30	30	45	45	31	19.5
M7N/M74N-32	32	47	47	31	19.5
M7N/M74N-33	33	48	48	31	19.5
M7N/M74N-35	35	50	50	31	22
M7N/M74N-38	38	55	56	31	22
M7N/M74N-40	40	57	58	31	22
M7N/M74N-43	43	60	61	31	22
M7N/M74N-45	45	62	63	31	22
M7N/M74N-48	48	65	66	31	22
M7N/M74N-50	50	67	70	32.5	23
M7N/M74N-53	53	70	73	32.5	23
M7N/M74N-55	55	72	75	32.5	23
M7N/M74N-58	58	79	78	37.5	23
M7N/M74N-60	60	81	80	37.5	23
M7N/M74N-63	63	84	83	37.5	23
M7N/M74N-65	65	86	85	37.5	23
M7N/M74N-68	68	89	90	34.5	26
M7N/M74N-70	70	91	92	42	26
M7N/M74N-75	75	99	97	42	26
M7N/M74N-80	80	104	105	41.8	26.2
M7N/M74N-85	85	109	110	41.8	26.2
M7N/M74N-90	90	114	115	46.8	26.2
M7N/M74N-95	95	119	120	47.8	26.2
M7N/M74N-100	100	124	125	47.8	25.2
M7N/M74N-105	105	138	134.3	47	25.2
M7N/M74N-110	110	143	140.3	47	30
M7N/M74N-115	115	148	148.3	47	30
M7N/M74N-120	120	153	150.3	47	30
M7N/M74N-125	125	158	154.3	47	30
M7N/M74N-130	130	163	158.3	47	30
